Factories are rethinking palletizing, and the math finally makes sense. With global demand for robotic palletizers projected to hit $1.6 billion in 2025, manufacturers are swapping bulky industrial setups for systems that fit their space and budget.
Cobot palletizers deliver that shift. They stack without safety cages, program without code, and work beside your team. No fenced-off zones required. The result is faster stacking, safer ops, and ROI that doesn't require a CFO's blessing and three years of patience.
What is a cobot palletizer?
A cobot palletizer is a collaborative robotic system that automatically stacks products onto pallets. It is designed to work safely alongside human operators without the need for safety fencing. These systems combine a robotic arm, an end-of-arm gripper, and a vision system or sensors to locate products and place them precisely.
The goal is simple: automate the repetitive lifting while keeping operations flexible and easy to reconfigure. Cobot palletizing removes fixed barriers and complex programming, so small and mid-size manufacturers can automate without changing the entire line.
From stacking beverage trays to handling packaged goods in logistics centers, cobot palletizers bring industrial-level consistency in a compact, human-friendly form.
How do cobot palletizers work?
Cobot palletizers work by combining sensors, robotic motion, and simple software to automate the process of stacking products onto pallets. Each unit uses a robotic arm, a gripper, and a vision or sensor system to identify, pick, and place boxes according to a programmed stacking pattern.
Here’s how the palletizing cycle typically runs:
- Product detection: Built-in vision cameras or sensors identify incoming boxes and confirm their position, size, and orientation.
- Pick phase: The cobot uses a vacuum or mechanical gripper to lift the box from the conveyor or staging area.
- Path movement: The six-axis robotic arm follows a pre-taught motion path to move the product toward the pallet.
- Placement: Software calculates the stacking pattern and directs the cobot to place each box in the correct row or layer.
- Cycle repeat: The process continues until the pallet is full. The system then signals for removal or automatically starts stacking on a new pallet.
Modern palletizing cobots come with no-code or drag-and-drop programming interfaces, making them much easier to set up compared to traditional robots. Operators can input box dimensions, pallet size, and stacking height directly on a touchscreen, often getting systems running within hours.
Safety features such as power-and-force limiting and speed/separation monitoring follow the guidance of ISO/TS 15066 and ISO 10218, so operators can work nearby without cages.
Applications across industries
The main applications of cobot palletizers across industries include warehousing, food production, consumer goods, pharmaceuticals, and general manufacturing. Each gains unique operational benefits.
Warehousing and logistics
Warehousing is one of the biggest adopters of cobot palletizing. In distribution hubs and e-commerce centers, these robots handle everything from parcel stacking to pallet preparation for outbound shipping.
Unlike traditional palletizing cells that need fencing, cobots can run in open layouts after a risk assessment and proper safety configuration. Their mobility allows deployment at multiple dock points, helping warehouses run longer hours without additional labor.
Food and beverage
In the food and beverage sector, cobot palletizers organize the packaging of cartons, trays, and bottled products. They can handle cold storage conditions and meet washdown or stainless-steel hygiene requirements.
Built-in vision sensors ensure every box or tray is correctly aligned before stacking. Many plants use cobots to automate end-of-line palletizing for beverage crates or snack cartons, reducing repetitive strain injuries and maintaining consistent output even during shift gaps.
Consumer goods manufacturing
Consumer goods factories often face high product turnover and short production cycles. Cobot palletizers help manage mixed-size cartons and frequent SKU changes without pausing operations.
Operators can select preloaded pallet layouts or adjust box dimensions through drag-and-drop software in minutes. This flexibility keeps production lines running continuously while reducing downtime caused by manual setup or mechanical retooling.
Pharmaceuticals and healthcare
Cobot palletizers fit easily into cleanroom environments where precision and sterility are mandatory. They stack lightweight boxes of medical kits, vials, or sterile packaging while following strict ISO and GMP standards.
Low vibration, enclosed joints, and smooth surfaces make them easy to sanitize. Since collaborative systems log every movement, manufacturers can maintain full traceability for compliance audits.
General manufacturing
Across industries like automotive, metal fabrication, and electronics, cobot palletizers automate the final stage of production. Systems such as Standard Bots Core and Thor bring industrial precision (±0.025 mm) to compact cells, helping plants automate without the cost of large robotic enclosures.
By handling heavy or repetitive lifting, these cobots cut workplace injuries and free skilled labor for higher-value tasks like machine setup or quality inspection.
Real examples of cobot palletizing in action
Cobot palletizers are already proving their value across industries, from small warehouses to high-mix manufacturing lines. Real-world examples show how they cut labor costs, improve consistency, and speed up throughput without major floor changes.

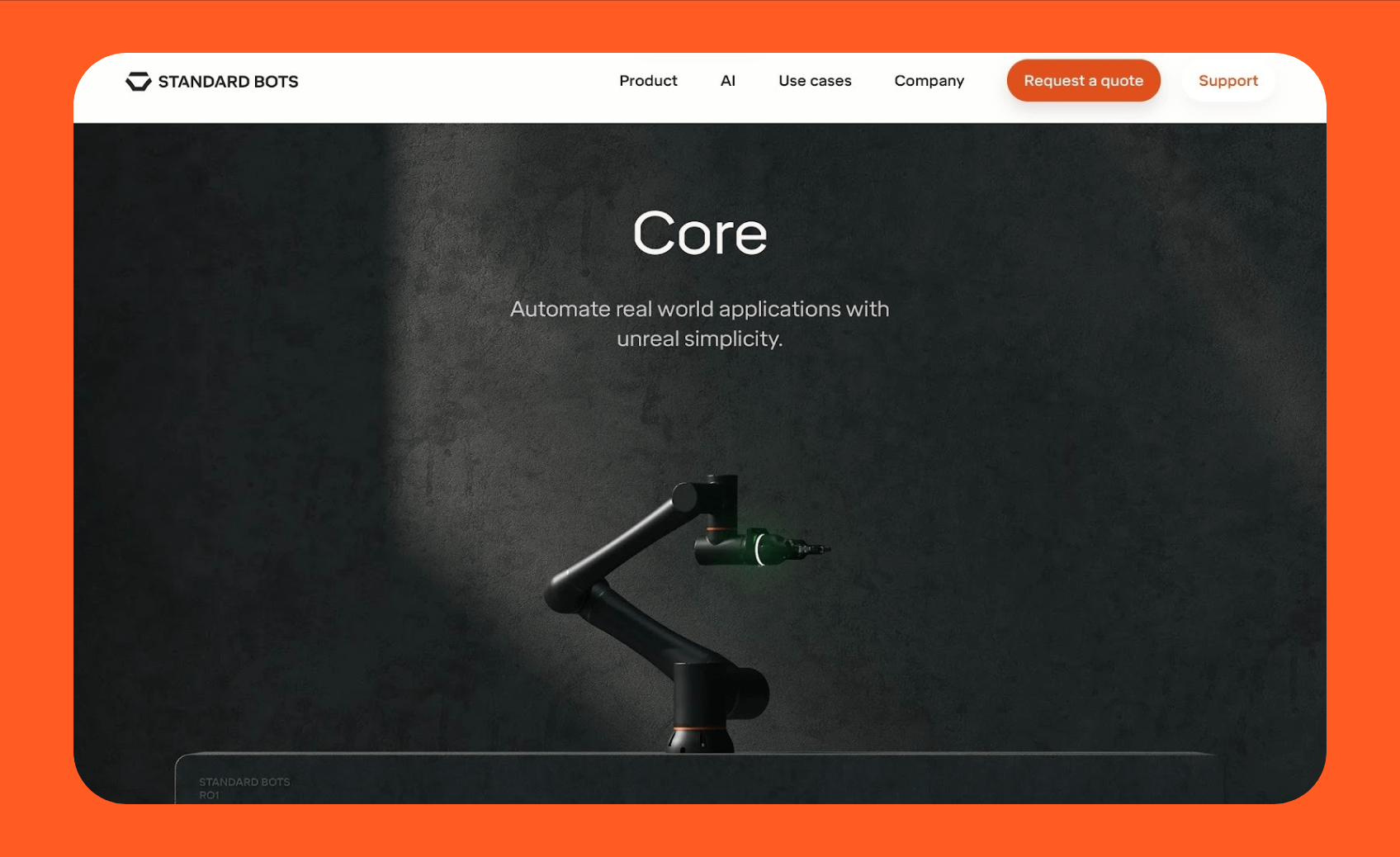

1. Standard Bots Core
Standard Bots Core is a compact six-axis cobot designed for end-of-line palletizing, part handling, and packaging. With a payload capacity of 18 kg and repeatability of ±0.025 mm, it delivers industrial precision in a lightweight form factor. Small manufacturers use Core to handle single-line palletizing tasks, typically stacking cartons or shrink-wrapped boxes.
Because Core uses a no-code interface, operators can reprogram stacking patterns in minutes, making it ideal for short production runs or frequent SKU changes. Priced around $37,000, Core helps companies see ROI within 12 to 18 months, primarily through reduced labor strain and extended uptime.
Developed entirely in-house, Core combines Standard Bots’ hardware and software expertise, giving users a cohesive, plug-and-play experience that sets up fast and scales easily.

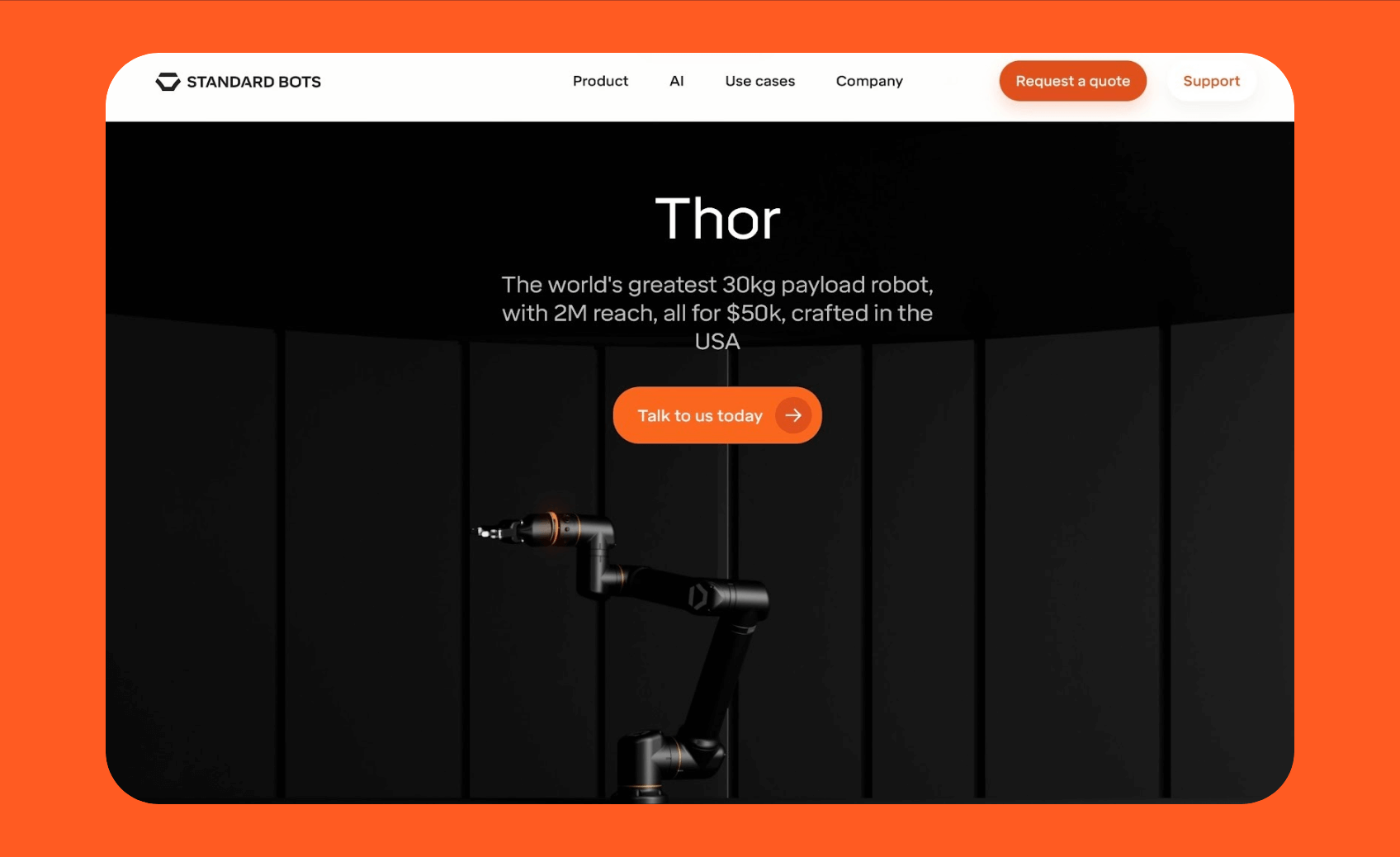

2. Standard Bots Thor
Thor handles up to 30 kg per lift while maintaining the same ±0.025 mm precision as Core. A 2-meter reach makes it better suited for heavy-duty palletizing, multi-shift operations, or larger packaging lines that move heavy cases or bags.
At a list price of $49,500, it provides strong value for large-scale production environments looking to replace manual stacking with safe, high-throughput automation. Designed with future factories in mind, Thor expands Standard Bots’ lineup to cover larger payloads and continuous operation, preparing teams for full-scale palletizing automation.
Technical specs and performance factors
The technical specs and performance factors of a cobot palletizer determine how efficiently it lifts, reaches, and stacks in real-world operations. Key parameters like payload, reach, precision, stacking height, and cycle rate define its speed, accuracy, and suitability for different production setups.
Cost, ROI, and operational impact
The cost of a cobot palletizer falls between $35,000 and $120,000, including hardware, software, and installation. Entry-level models like standalone arms with basic grippers start near $35,000, while advanced turnkey systems with vision, conveyors, and multi-pallet support can exceed $100,000.
Most palletizing cobot deployments target 12 to 24 months of payback, driven by labor savings, higher machine uptime, and fewer injuries.
Cost breakdown by system type:
Operational impact and ROI drivers
- Labor efficiency: A single cobot palletizer can replace one to two manual operators per shift, freeing workers for quality control or upstream processes.
- Reduced downtime: Pattern or product changeovers take minutes instead of hours, keeping throughput steady even with mixed SKUs.
- Safety improvement: Force-limited joints and smart sensors reduce repetitive strain injuries and fatigue among workers.
- Space optimization: Cobot palletizers have a compact footprint, usually under 9 to 10 m², depending on cell layout.
- Energy and maintenance savings: Low-power electric drives and minimal lubrication needs lower lifetime costs compared to pneumatic or hydraulic systems.
Challenges and limitations
The challenges and limitations of cobot palletizers mostly relate to payload, speed, and environmental conditions. While they offer safer and more flexible automation than traditional palletizers, they’re not a one-size-fits-all solution.
Here are the main challenges you should consider:
- Limited payload capacity: Most cobot palletizers handle between 5 and 30 kg per lift. This range covers typical boxes and trays, but not heavy or irregular products. For loads exceeding this, an industrial robot arm or gantry system is more suitable.
- Moderate cycle speed: Cobots usually run 6 to 10 picks per minute. High-throughput industrial systems can exceed 12 picks per minute, and with specialized controls, can go higher.
- Consistency requirements: Cobot palletizers rely on uniform packaging for accuracy. Soft, irregular, or damaged boxes can cause misalignment. Vision-assisted systems can correct errors, but they add cost and complexity.
- Floor and vibration sensitivity: For consistent stacking, cobots need a level, stable floor. Vibrations from nearby machinery can affect calibration, particularly at taller pallet heights. Proper base mounting is essential for reliable accuracy.
- Environmental limits: Cobot arms aren’t built for extreme heat, heavy dust, or outdoor conditions unless specifically rated for it. Check IP ratings before deploying cobots near heat, dust, or washdown.
- Maintenance and operator training: While cobots need minimal upkeep, regular cleaning and calibration of grippers and suction systems are critical. Operators should know how to reset errors, inspect joints, and update software. Most models now include built-in diagnostics to simplify upkeep.
How to choose the right collaborative palletizer
Choosing the right collaborative palletizer depends on your product mix, throughput goals, and workspace layout. Since cobot palletizers vary in payload, reach, and software design, matching the system to your exact operational needs ensures both efficiency and long-term ROI.
Here’s how to evaluate the right fit for your facility:
- Match payload and reach: Start with your heaviest box weight and tallest pallet height. Choose a cobot that can comfortably lift at least 20% more than your heaviest load to maintain reliability over time.
- Evaluate floor space and footprint: Check the available space near conveyors or packaging exits. Cobot palletizers typically use under ~9 to 10 m², depending on layout (dual pallets, infeed, lift column). Ensure the cobot’s arm reach aligns with your pallet dimensions.
- Consider software usability: Look for no-code or drag-and-drop interfaces that allow quick setup and teach-by-demonstration programming. These systems let operators adjust stacking patterns without external support, saving time during frequent product changeovers.
- Check gripper versatility: The end-of-arm tooling (EOAT) determines how well the cobot handles different materials. Suction cups work best for sealed boxes, while mechanical or adaptive grippers fit irregular or heavy packages. A modular EOAT design allows faster swaps between product types.
- Review safety and compliance standards: Confirm that the system complies with ISO 10218-2:2025 or similar collaborative safety standards. Built-in torque sensors, force limits, and proximity monitoring allow human operators to work nearby safely without protective cages.
- Assess vendor support and service: After-sales training, local technical support, and warranty coverage are essential. A reliable supplier should provide regular updates, calibration guidance, and replacement parts to maintain uptime.
- Factor in scalability and integration: Choose a system that integrates easily with existing conveyors, pallet dispensers, or vision systems. Scalable solutions support expansion as production needs grow.
Maintenance and safety tips
Maintenance and safety tips for cobot palletizers focus on keeping the system precise, reliable, and safe for operators. Even though collaborative palletizers are built for low upkeep, consistent checks and preventive care prevent errors, extend lifespan, and maintain compliance with safety standards.
Here’s how to maintain your cobot palletizer effectively:
- Inspect before each shift: Examine joints, sensors, and grippers for wear, dust, or misalignment. Clean surfaces and remove debris that might interfere with suction or motion accuracy.
- Recalibrate regularly: Run calibration and zero-point checks every few weeks, or after major software updates. This ensures accurate placement over long stacking cycles.
- Service grippers and vacuum systems: Clean vacuum filters and replace suction cups when worn. For mechanical grippers, lubricate moving parts and verify gripping force to maintain consistency.
- Update software and firmware: Keep your system updated to benefit from improved stacking algorithms, motion smoothing, and new safety features added by the manufacturer.
- Train operators on safe procedures: Even with built-in force limiting, operators should know emergency stop locations, hand-guiding modes, and safe approach distances. Proper training minimizes operational errors.
- Plan preventive maintenance: Schedule quarterly professional servicing to inspect motors, encoders, and control wiring. Preventive checks catch small issues before they affect performance.
- Keep workspace clear and marked: Define safety zones with tape or floor markings to guide traffic. This ensures forklifts and staff don’t interrupt palletizing cycles or trigger unnecessary stops.
Summing up
Cobot palletizers are changing how factories stack and ship products. They blend human safety with robotic precision, automating one of the toughest and most repetitive jobs on the floor. In 2025, they’ve moved from “nice-to-have” to “must-have,” delivering faster ROI, smaller footprints, and all-day uptime.
With payloads up to 30 kg and setup times measured in hours, collaborative palletizers prove that automation doesn’t need cages or coding to be effective. They’re simple, scalable, and built for the way modern factories work.
Next steps with Standard Bots’ robotic solutions
Standard Bots Core and Thor are perfect six-axis robot additions to palletizing operations, delivering precision and flexibility without traditional robotic cell costs.
- Affordable and adaptable: Core lists at $37k and Thor at $49.5k, delivering high-precision palletizing automation at half the cost of traditional robots.
- Precision and power: With repeatability of ±0.025 mm, Core’s 18 kg payload and Thor’s 30 kg payload handle everything from small cartons to heavy cases with consistent accuracy.
- AI-driven simplicity: Equipped with advanced demonstration learning and real-time adaptation through Standard Bots' vertically integrated AI platform, Core and Thor integrate smoothly with palletizing operations for flexible automation.
- Safety-first design: Machine vision and collision detection ensure Core and Thor work safely alongside human operators.
Schedule your on-site demo with our engineers today and see how Core or Thor can automate pallet stacking in your facility with unmatched precision and speed.
FAQs
1. What does a palletizer do?
A palletizer automates the process of stacking products such as boxes, cartons, or bags onto pallets for storage or shipping. It replaces repetitive manual lifting with precise, programmed motion to create stable stacks that meet shipping standards. By standardizing placement and reducing strain on workers, palletizers improve both efficiency and safety across packaging lines.
2. How is a cobot palletizer different from a traditional robot palletizer?
A cobot palletizer differs from a traditional palletizer in safety, setup, and usability. Traditional palletizers require fenced-off areas and external programming. Collaborative palletizers use built-in safety sensors and power-limiting joints to work safely beside people. They also feature no-code or drag-and-drop programming, so operators can adjust stacking layouts in minutes instead of calling a technician.
3. How much does a collaborative palletizer cost?
The cost of a collaborative palletizer in 2025 ranges from $35,000 to $120,000, depending on payload, reach, and integration level. Entry-level systems include just the arm and gripper, while mid-range setups include advanced motion control and built-in software. High-capacity systems handle heavier boxes and multi-shift operations.
4. Can a cobot palletizer handle different box sizes?
Yes, a cobot palletizer can handle different box sizes and shapes with the right end-of-arm tooling and software. Most systems support adaptive grippers or multi-zone vacuum cups that adjust automatically to various dimensions. Operators can also program multiple stacking patterns or product SKUs within the same interface.
5. Which is the best cobot palletizer in 2025?
The best cobot palletizer in 2025 depends on your workload and space requirements, but Standard Bots Core and Thor are two of the strongest performers in the category. Core offers an 18 kg payload and ±0.025 mm precision for compact palletizing tasks. Thor’s 30 kg payload suits heavy-duty, multi-shift operations.
