Palletizing robots take on one of the toughest jobs in logistics: stacking boxes, bags, and crates onto pallets all day long. What once demanded teams of workers now happens faster, safer, and with far fewer errors.
Companies using palletizing automation report labor cost reductions of up to 40% while improving throughput and consistency. For manufacturers under pressure to ship more with fewer staff, palletizing robots offer a practical way to cut strain, keep lines moving, and scale operations.
What is a palletizing robot?
A palletizing robot is an industrial robot designed to automate stacking items onto a pallet, typically at the end of a production line. These robots handle tasks like picking, orienting, and placing items (often boxes, but also bags, trays, etc.) onto pallets in a predefined pattern.
This automation enhances efficiency, reduces labor costs, and improves workplace safety by automating repetitive or potentially hazardous tasks.
The first palletizing systems appeared in the late 1940s as mechanical conveyors and layer-forming machines. Over time, they evolved into programmable robotic arms with vision systems, AI-based pattern optimization, and the ability to handle multiple product types without manual changeovers.
Today, you’ll find both collaborative palletizing robots, safe enough to work alongside people without safety cages, and heavy-duty industrial models designed for high-speed, large-scale operations.
Manufacturers build these robots to reduce labor strain, improve stack quality, and keep lines moving efficiently.
How do palletizing robots work?
Palletizing robots stack products onto pallets using sensors, motion control, and programmed patterns. Most follow the same workflow from infeed to a full pallet.
- Product infeed and detection: Products arrive via a conveyor or infeed table. Vision sensors, barcode scanners, or weight sensors detect the item’s position, size, and orientation. This ensures the robot knows exactly where to pick it up and how to place it. In high-speed palletizing setups, advanced tracking systems synchronize robot motion with a moving conveyor, so the robot never needs to stop between picks.
- Gripping mechanism: The end-of-arm tool (EOAT) is selected based on the product type.
- Vacuum grippers use suction cups to lift boxes, trays, or cartons without damaging them.
- Clamp grippers apply gentle pressure to hold bags or irregularly shaped products securely.
- Custom tools can be designed for fragile goods, shrink-wrapped packs, or mixed-SKU loads.
- Placement based on programmed stacking patterns: The robot follows pre-set patterns that determine where each item is placed for maximum stability and optimal use of pallet space. Patterns can range from simple column stacks to complex interlocked layers for heavy or uneven products. In some auto palletizing systems, operators can create new patterns on a touchscreen without coding.
- Automatic adjustments for size, weight, and stability: AI in palletizing enables real-time decision-making, adjusting grip pressure, placement angle, or stacking sequence if it detects a variance in product dimensions or a potential stability issue. This reduces downtime and product damage compared to conventional palletizing systems.
In more advanced installations, palletizing robots are part of a fully automated palletizing cell that includes automatic pallet dispensers, slip sheet applicators, and stretch-wrapping machines. These create a continuous flow from the production line to ready-to-ship pallets with minimal human involvement.
Types of palletizing robots
Palletizing robots include conventional (fast, inflexible), robotic arms (flexible), cobots (safe, compact), and high-speed (max throughput). Each balances speed, flexibility, safety, and adaptability.
Conventional palletizing systems
Conventional palletizing systems are fixed automation setups where products move along conveyors into a layer-forming area before being mechanically transferred onto a pallet. They excel in high-volume, single-SKU lines where the layout doesn’t change often.
Conventional systems can be faster than some robotic arms for repetitive jobs, but they lack flexibility when product sizes or patterns vary.
Robotic arm palletizers
A robotic arm palletizer uses a six-axis or four-axis industrial arm to pick and place products directly onto the pallet. These systems handle mixed SKUs, irregular shapes, and varied stacking patterns without mechanical changeovers. They’re ideal for operations that frequently change product runs or need to stack in tight spaces.
Collaborative palletizing robots (cobots)
Collaborative palletizing robots are designed to work alongside human operators without fencing, thanks to built-in safety features like force limiting and collision detection. They’re safer and easier to integrate in small or medium-sized businesses, especially where floor space is tight.
High-speed palletizers
High-speed palletizers are specialized robotic or hybrid systems built for maximum throughput, often exceeding 10 to over 150 cycles/minute. They’re widely used in the food and beverage industries where continuous production and quick changeovers are critical. High-speed models may combine robotic arms with layer-forming equipment to achieve both flexibility and volume.
Types of palletizing robots: TL;DR
Key industries and applications
Key industries for palletizing robots include food and beverage, manufacturing, logistics, pharmaceuticals, and agriculture. This section explains how each sector uses palletizing automation to boost throughput, improve consistency, and reduce manual labor in high-volume operations.
- Food and beverages: Automated palletizing is used to stack bottled drinks, canned goods, packaged snacks, and bulk bags. Robots keep pace with high-speed filling lines, maintaining consistent stack quality and reducing the risk of contamination by minimizing human handling.
- E-commerce and warehousing: In fulfillment centers, palletizing robots handle mixed-size cartons, preparing outbound shipments faster and more accurately than manual teams. They can work with dynamic order streams and adjust stacking patterns on the fly.
- Manufacturing: From automotive parts to electronics, robots stack heavy components, subassemblies, and boxed products with precision. This reduces worker fatigue from repetitive lifting and helps keep lines running continuously.
- Pharma and cosmetics: In sectors with fragile, high-value products, robots ensure precise stacking that prevents damage. Their cleanroom-compatible models meet strict hygiene requirements and deliver exact placement for small cartons or bottles.

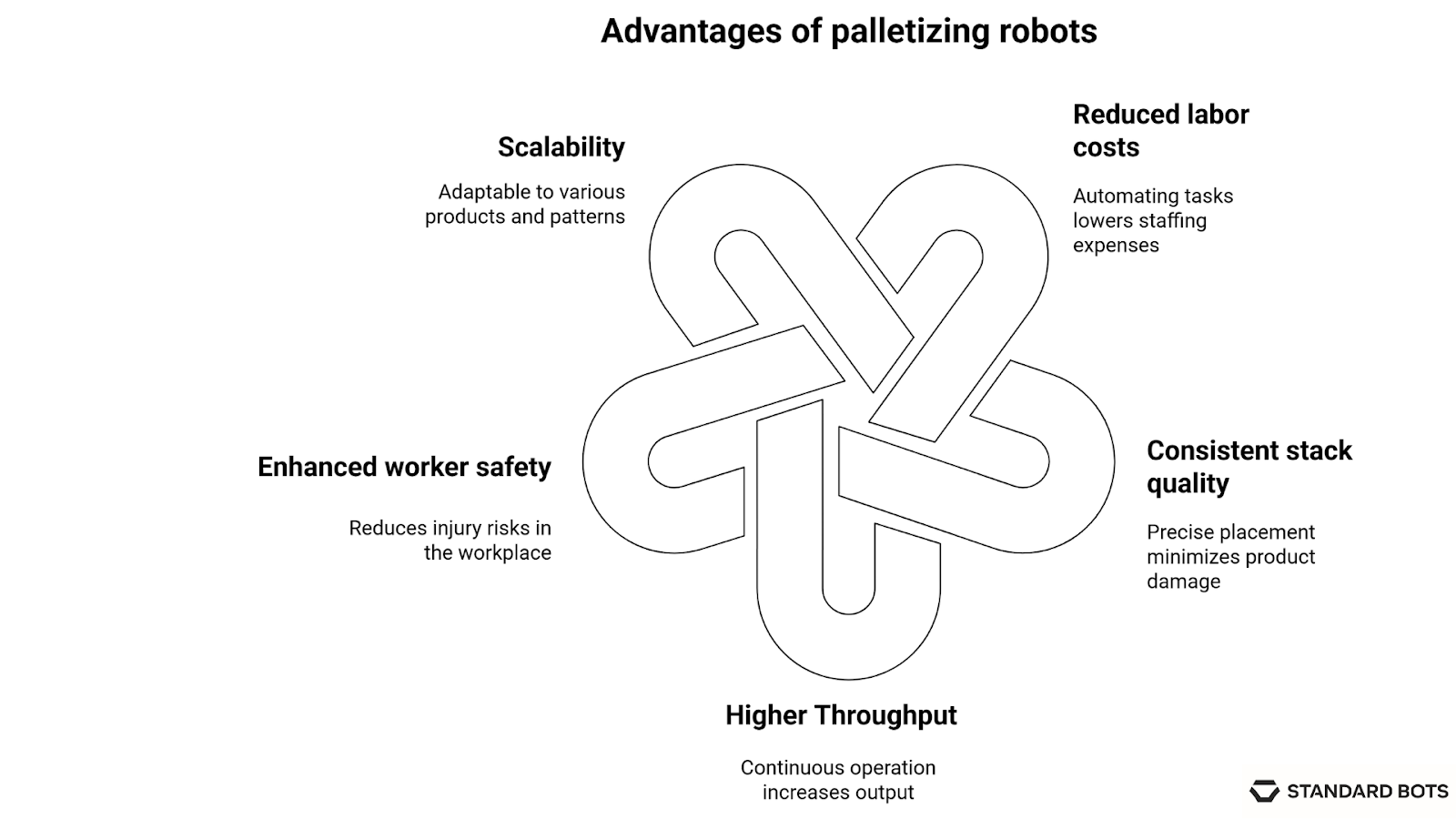

Benefits of palletizing robots
Palletizing robots deliver faster stacking, consistent quality, and reduced labor strain. The benefits include productivity gains, improved safety, space savings, and how automation impacts overall operating costs in warehouses and production facilities.
Some of the most notable advantages include:
- Reduced labor costs and turnover: Automating palletizing removes one of the most physically demanding jobs in a warehouse or factory. This can significantly cut staffing costs and help retain workers by reassigning them to less strenuous roles.
- Consistent stack quality and reduced product damage: Robots place each item in exactly the right position and orientation, eliminating misaligned loads and minimizing damage during transport.
- Higher throughput and 24/7 uptime: Robotic systems work continuously without breaks, matching or exceeding the output of multiple human workers while maintaining consistent quality.
- Enhanced worker safety: Removing repetitive heavy lifting reduces the risk of injuries, helping companies meet workplace safety goals and lower injury-related costs.
- Scalability for different SKUs and stacking patterns: A single system can be reprogrammed for new products or pallet layouts without mechanical retooling, making it adaptable to changing business needs.
Challenges and limitations
Palletizing robots offer major gains, but some factors can affect adoption and ROI. Understanding these challenges helps you plan better and avoid unexpected costs or downtime.
- High upfront investment: A collaborative palletizing robot may start at around $35,000, whereas large industrial systems can range from $100,000 to over $200,000, depending on payload, speed, and accessories.
- Programming and integration complexity: Multi-SKU lines, irregular products, or changing pallet configurations can require more advanced programming and integration work. This may mean additional training or outside engineering support.
- Space requirements: High-speed and multi-line palletizing setups may need a larger footprint to accommodate safety zones, conveyors, and pallet handling equipment.
- Maintenance and downtime risks: Like any mechanical system, palletizing robots require regular inspection, lubrication, and software updates to avoid breakdowns. Unexpected downtime can impact production schedules.
How much does a palletizing robot cost?
Palletizing robots typically cost between $50,000 and $550,000, depending on the type of system, payload capacity, speed, and level of integration required. Smaller standalone units sit at the lower end of this range, whereas fully integrated systems with conveyors and safety features represent the higher end.
- Basic automated pallet machines start at around $50,000, making them an entry point for smaller operations or simpler palletizing tasks.
- Advanced robotic palletizers with higher payloads, faster speeds, and multi-SKU handling can range from $50,000 to over $300,000, depending on configuration and automation features.
- Fully integrated palletizing systems that include the robot arm, conveyors, safety systems, pallet dispensers, and wrapping stations typically cost between $175,000 and $550,000.
- Collaborative palletizing robots (cobots) generally fall between $50,000 and $100,000+, with costs influenced by payload capacity, reach, and the type of end-of-arm tooling used.
Most manufacturers don’t publish official list prices, so these figures are based on verified quotes from integrators and suppliers. ROI can often be achieved in 12 to 36 months, depending on operating hours, labor cost savings, and reductions in product damage.
Conventional vs. robotic palletizing
Conventional palletizing offers maximum speed for single products, while robotic palletizing adds flexibility for varied SKUs and layouts. This section compares both systems across speed, adaptability, space requirements, and integration, helping you decide which is better for your operation.
Best palletizing robots in 2025
The best palletizing robots in 2025 combine high-speed performance with versatile stacking capabilities. This section reviews leading models from top brands, covering specs, speed ratings, and key features that make them stand out in industrial and logistics environments.

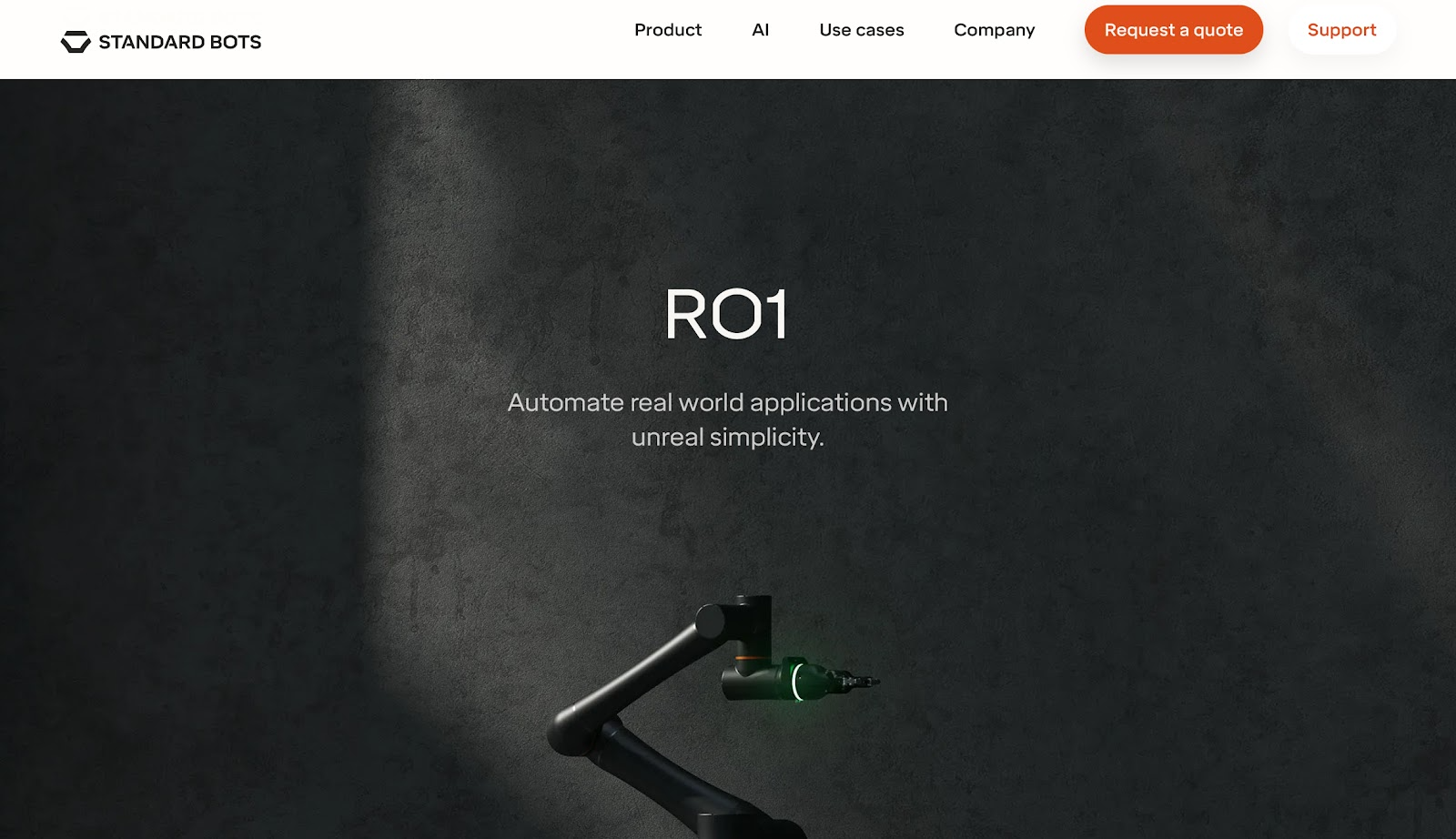

Standard Bots RO1
The RO1 is a six-axis cobot designed for high-precision tasks like palletizing, machine tending, and assembly. With an 18 kg payload, 1.3 m reach, and ±0.025 mm repeatability, it offers industrial performance in a compact footprint.
RO1 uses built‑in 3D vision and AI‑assisted programming to detect product positions, adjust patterns in real time, and run cage‑free in most settings. Operators can program it through a no-code interface or API, reducing integration time.
RO1’s price at $37,000 list is roughly half that of many comparable cobots, making it an affordable option for small and medium operations looking to automate palletizing without sacrificing precision or versatility.
FANUC M-410 Series
The FANUC M-410 series is one of the most widely used industrial palletizing robot lines, with models supporting payloads from 110 kg to 800 kg. Known for high-speed operation, the series can achieve up to 2,200 cycles per hour on lighter loads.
These robots are built for continuous, high-volume palletizing in sectors like food, beverage, and building materials. The four-axis design prioritizes speed and vertical lift capacity, making it ideal for stacking tall pallets or handling heavy products.
FANUC’s integration ecosystem includes advanced motion control, vision systems, and over 250 end-of-arm tooling options, giving it unmatched adaptability in large-scale operations.

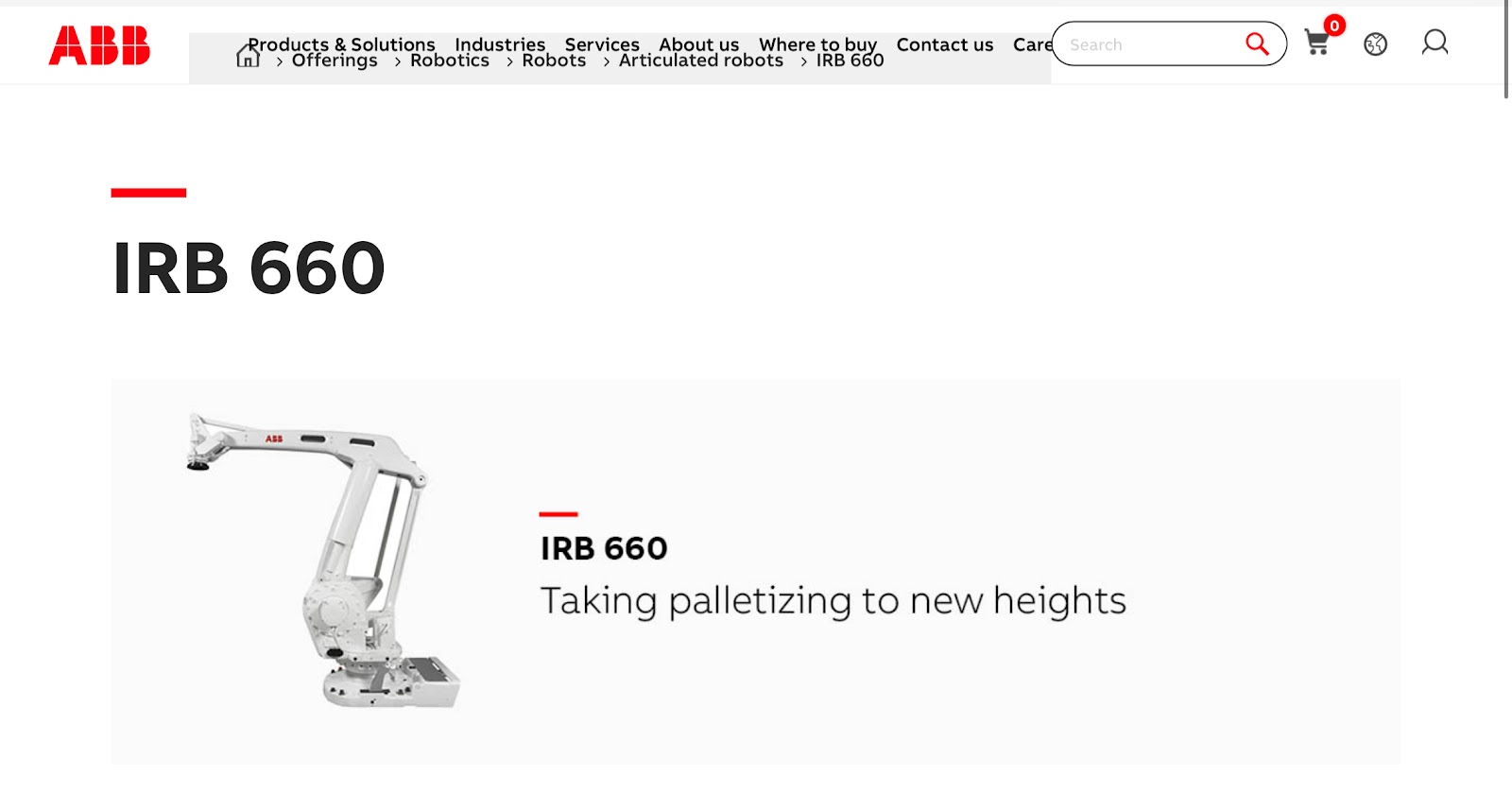

ABB IRB 660
The ABB IRB 660 is a four-axis, high-speed palletizing robot designed for heavy-duty industrial use. It offers two main configurations: a 180 kg payload model optimized for maximum speed, and a 250 kg payload model for heavier loads. With a reach of 3.15 meters, it can stack high pallets and serve multiple lines from a single location.
The IRB 660 is known for smooth, rapid cycle times up to 2,190 cycles per hour while maintaining precise placement. It’s widely deployed in industries such as beverages, building materials, and packaged food.
ABB’s Palletizing PowerPac software allows operators to quickly set up new patterns without complex programming, making it easier to adapt to changing production needs.

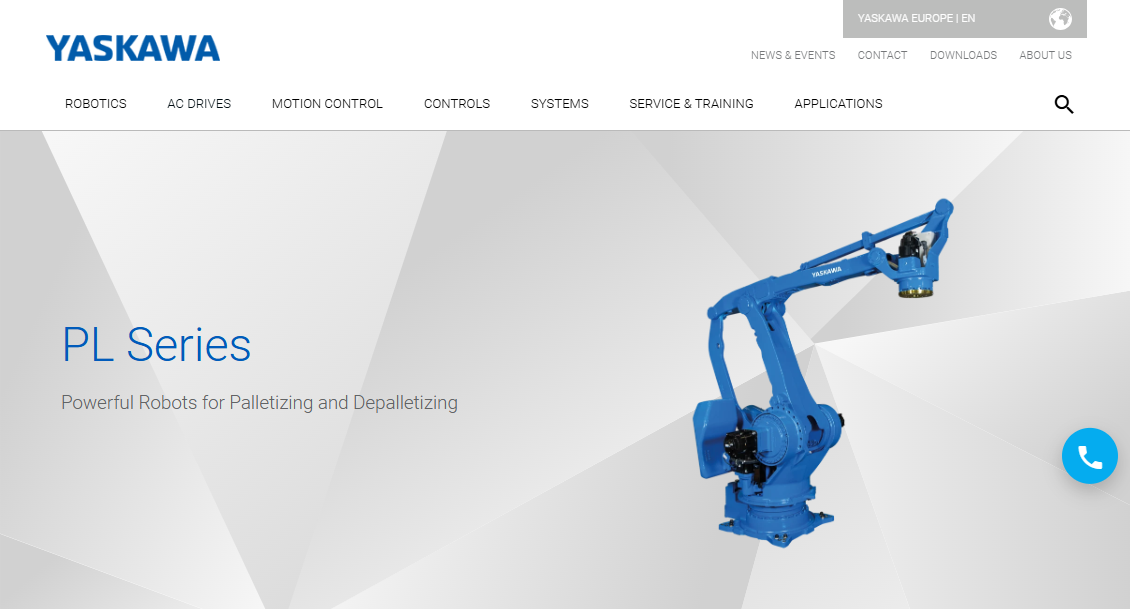

Yaskawa PL Series
The Yaskawa Motoman PL series is the latest line of four-axis palletizing robots built for speed and versatility. Payload capacities range from 80 kg to 800 kg, with a reach of up to 3.16 meters, making them ideal for applications from lightweight parcels to heavy loads.
These robots are designed to deliver high throughput in demanding environments such as logistics centers, food production, and large distribution facilities.
Their slim arm design with internal cabling and a hollow wrist simplifies integration of end-of-arm tooling while protecting media lines from wear. This reduces maintenance requirements and ensures reliable, long-term operation even in facilities running extended shifts with minimal downtime tolerance.
Final thoughts: Is your operation ready for a palletizing robot?
Palletizing robots now automate one of the toughest factory jobs, reducing costs and injuries while improving consistency. For manufacturers, the choice depends on operations:
- Heavy-duty arms are built for 24/7 palletizing in large plants and warehouses.
- Cobots are an affordable entry point for small and mid-size shops with tight floor space.
- Conventional palletizers are best for single-SKU, high-speed lines where layouts rarely change.
- Robotic palletizers are flexible for mixed products, irregular shapes, or frequent changeovers.
Palletizing robots help manufacturers cut labor risks, keep pallet stacks consistent, and scale up production to meet growing demand.
Next steps with Standard Bots’ robotic solutions
Looking to upgrade your palletizing process? Standard Bots’ RO1 is the perfect six-axis cobot addition to any warehouse or production line, delivering unbeatable precision and flexibility.
- Affordable and adaptable: RO1 costs $37K (list price). Get high-precision palletizing at half the cost of traditional robots.
- Precision and power: With a repeatability of ±0.025 mm and an 18 kg payload, RO1 handles demanding palletizing jobs with ease.
- AI-driven simplicity: Equipped with AI capabilities on par with GPT-4, RO1 integrates smoothly with palletizing systems for advanced automation.
- Safety-first design: Machine vision and collision detection mean RO1 works safely alongside human operators.
Schedule your on-site demo with our engineers today and see how RO1 can bring AI-powered greatness to your palletizing workflow.
FAQs
1. Do palletizing robots require safety fencing or cages?
Palletizing robots require safety fencing or cages when operating at high speeds, handling heavy loads, or working near people. Collaborative models with force-limiting sensors may run without cages, but safety scanners or light curtains are often used to meet workplace safety standards.
2. How long does it take to install a palletizing robot from delivery to full production?
Installing a palletizing robot typically takes 2–5 days, depending on complexity and site readiness. Plug-and-play models may be faster, while multi-line or custom setups take longer for conveyors, safety equipment, and testing.
3. What ongoing maintenance is needed for a palletizing robot, and how much does it cost annually?
Ongoing maintenance for a palletizing robot includes lubrication, inspections, and software updates. Annual costs generally run 3% to 5% of the purchase price, depending on usage and workload. Preventive service schedules help extend lifespan and minimize downtime, especially in high-volume, continuous-operation environments.
4. Can one robotic palletizer handle multiple production lines or SKUs simultaneously?
One robotic palletizer can handle multiple lines or SKUs if equipped with conveyor diverters, vision systems, and programmable stacking patterns. This setup is common in high-mix manufacturing and e-commerce operations, allowing fast product changeovers without major reconfiguration between runs.
5. How do I choose the right gripper or end-of-arm tool for fragile or irregular products?
Choosing the right gripper for fragile or irregular products depends on shape, weight, and surface. Vacuum grippers work well for boxes and trays, while clamp or custom tools handle bags, pouches, and uneven shapes. The correct tooling helps prevent damage and ensures consistent stacking quality.
6. What training do operators need to program and run a palletizing robot effectively?
Operators typically need 1 to 3 days of training to program and run a palletizing robot effectively. Modern systems use user-friendly interfaces and teach pendants, enabling quick skill development and reducing reliance on specialized programming knowledge for routine adjustments.
7. Are palletizing robots eligible for tax incentives, grants, or depreciation benefits in my region?
Palletizing robots may qualify for tax credits, accelerated depreciation, or government grants, depending on your location and industry. Many regions offer manufacturing and automation incentives, so it’s worth consulting local business development agencies or tax professionals to identify applicable programs before purchase.
