A carbon fiber robot arm is becoming one of the most in-demand upgrades in industrial robotics in 2025 because it combines high strength with low weight.

These arms can be up to 42% lighter than aluminum equivalents, allowing for faster cycle times and reduced energy use without compromising load capacity.

From manufacturing and aerospace to medical prosthetics, their corrosion resistance and stiffness make them adaptable to both cleanrooms and harsh environments.

What is a carbon fiber robot arm?

A carbon fiber robot arm is a robotic arm constructed primarily from carbon fiber, a lightweight and high-strength composite material. This material choice offers significant advantages over traditional materials like steel or aluminum, including increased speed, precision, and payload capacity, while reducing energy consumption.

The material itself is created by weaving continuous carbon filaments and embedding them in a polymer resin, producing a composite that is not only strong but also resistant to corrosion, chemicals, and temperature changes. This makes it particularly valuable for environments where metal arms might degrade, such as chemical plants, offshore platforms, or cleanrooms.

In robotics, these properties translate to lower inertia, reduced wear on motors and joints, and better responsiveness in high-speed applications. For example, in delta robots used in packaging or electronics, a carbon fiber arm can achieve quicker pick-and-place cycles while maintaining tight positional accuracy.

When compared to a standard industrial robot arm, a carbon fiber model delivers similar or greater durability while being easier to integrate into applications where weight and speed are critical factors.

‍

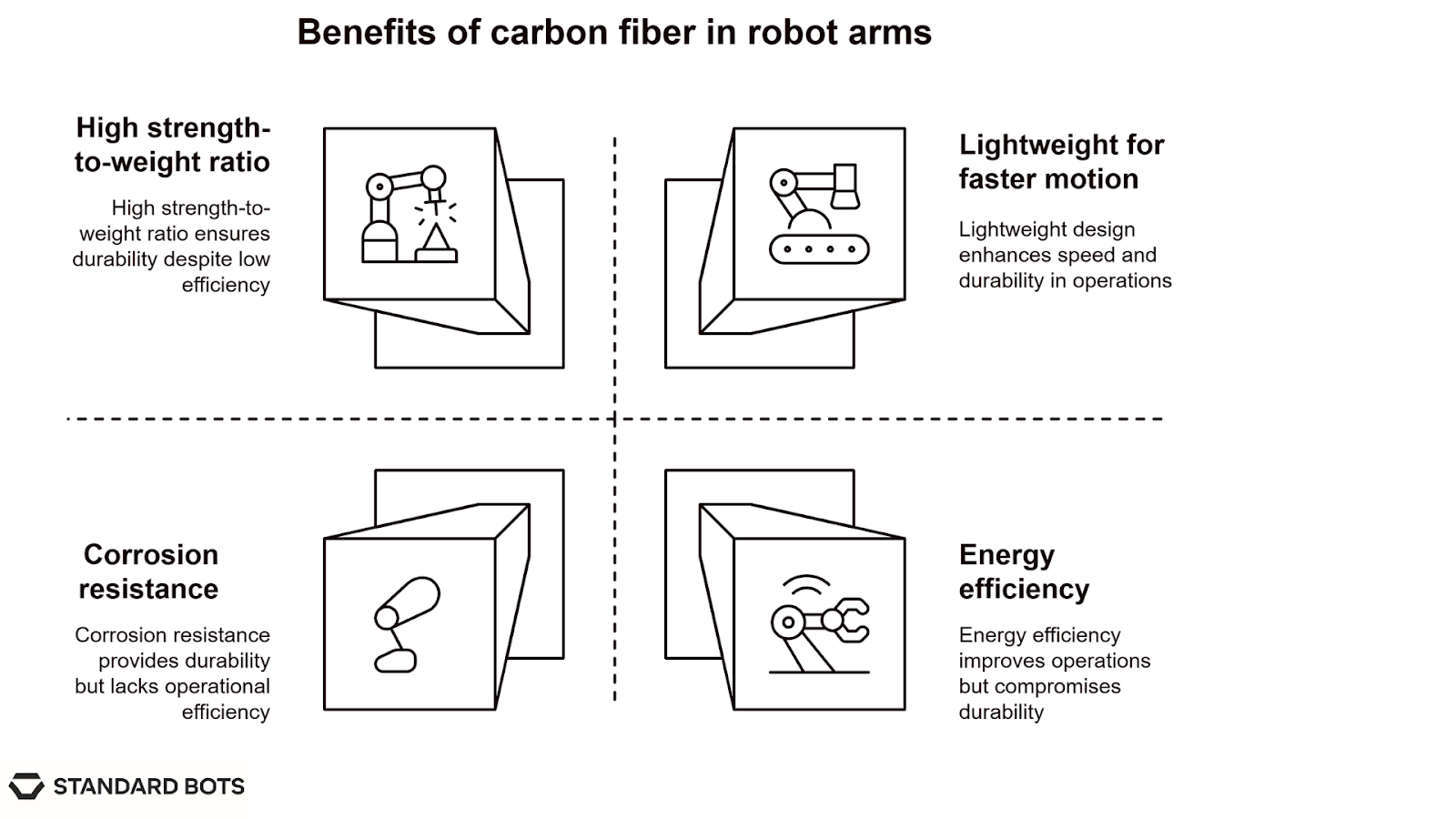

Key benefits of carbon fiber in robot arms

The key benefits of carbon fiber in robot arms include faster movement, higher durability, and lower operating costs.

‍

‍

Below are the reasons industries are replacing traditional metal arms with carbon fiber designs:

1. Lightweight for faster motion

A carbon fiber robot arm is significantly lighter than its aluminum or steel counterparts, often by 30–50%. This lower mass reduces inertia, allowing motors to accelerate and decelerate faster. In high-speed operations like packaging, electronics assembly, or small-part handling, this results in shorter cycle times and higher throughput.

The weight savings also make it possible to mount arms on lighter bases or mobile platforms without stability issues. In some cases, a lighter arm enables the use of smaller, less power-hungry actuators, which can further cut costs while improving performance in dynamic applications.

2. High strength-to-weight ratio

Despite being lightweight, carbon fiber has a strength-to-weight ratio comparable to steel. This means it can support substantial payloads without flexing or deforming, which is critical for accuracy in repetitive tasks.

For example, a carbon fiber arm can maintain precision tolerances during high-speed pick-and-place in electronics manufacturing, even with multi-shift operations. This rigidity also helps when handling delicate or high-value parts, as there’s less vibration or deflection under load.

The combination of high strength and low weight enables designs that would be impossible with heavier metals, especially in robotics, where every gram affects energy use and movement speed.

3. Corrosion resistance

Carbon fiber’s composite structure is inherently resistant to oxidation, rust, and most chemical damage. This makes it an excellent choice for harsh or chemically reactive environments such as offshore oil rigs, food processing facilities, or semiconductor cleanrooms.

Unlike steel, it won’t corrode from exposure to moisture or salt, and unlike aluminum, it resists pitting in acidic or alkaline conditions. In cleanroom settings, carbon fiber’s resistance to particle shedding and its smooth surface finish help meet strict contamination control requirements.

This durability extends the arm’s service life and reduces the frequency and cost of replacements in demanding operating conditions.

4. Energy efficiency

Because carbon fiber arms are lighter, the motors require less torque to move them, which directly reduces energy consumption per cycle. Over thousands or millions of repetitive movements, this can translate into substantial operational savings.

In industries where robots operate 24/7, the reduced energy demand not only lowers electricity bills but also minimizes heat generation in motors, extending their lifespan.

When paired with optimized control algorithms, the lighter arm can also improve dynamic efficiency, meaning you can achieve faster cycle times without a proportional increase in power draw, an advantage that metals can’t match at the same strength.

5. Reduced maintenance stress

The lighter load of a carbon fiber arm puts less strain on the entire robotic system, especially on servo motors, bearings, and joints. Over time, this translates into lower wear rates and longer intervals between scheduled maintenance.

For example, a cobot equipped with a carbon fiber arm can operate longer without needing motor replacement or recalibration, which cuts downtime and service costs. Reduced mechanical stress also helps maintain positional accuracy over the robot’s lifespan.

In heavy-duty environments, this benefit becomes even more pronounced, as the lighter arm handles shock and vibration more effectively than heavier, metal-based designs.

‍

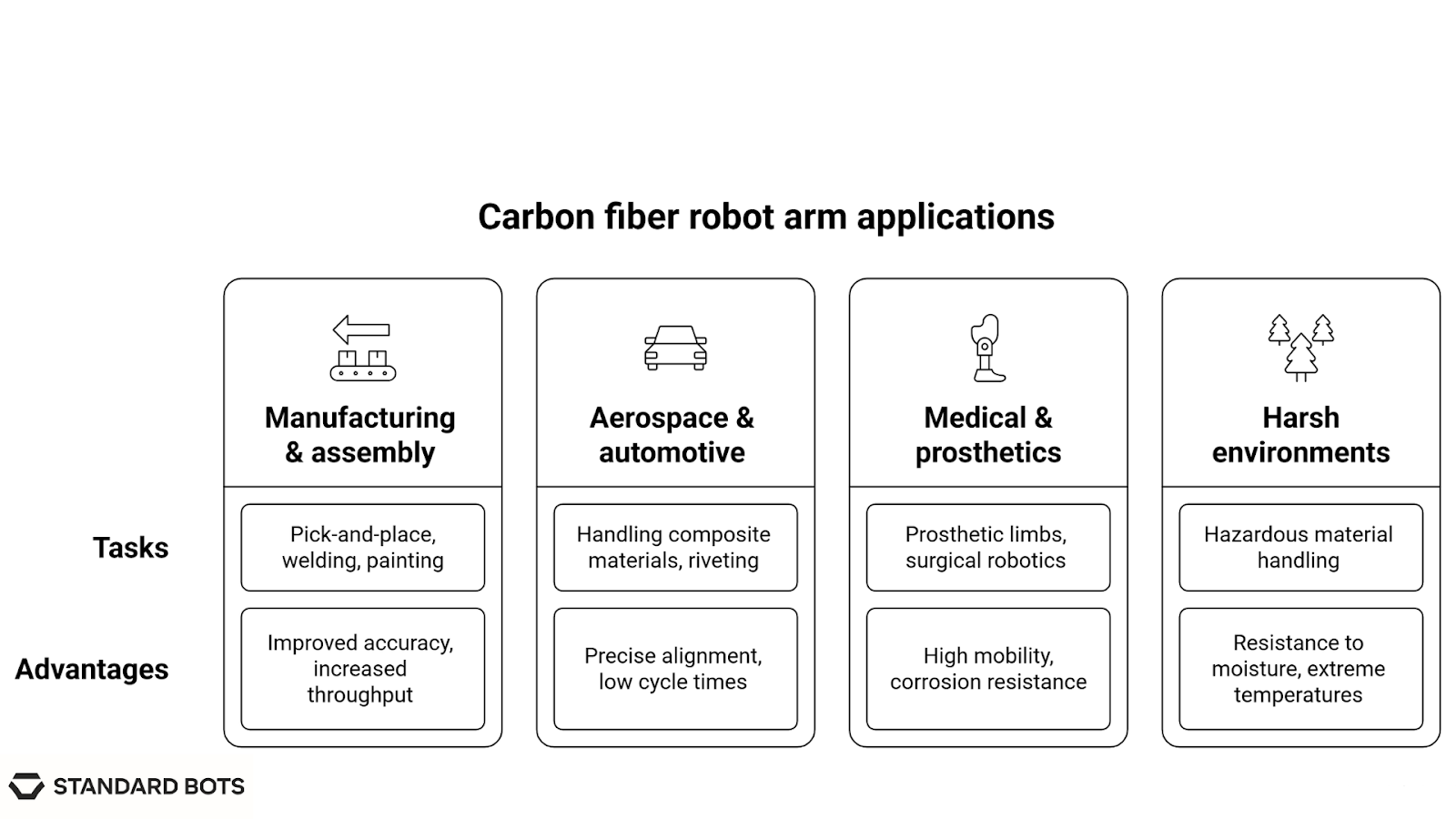

Industrial applications in 2025

The industrial applications of carbon fiber robot arms in 2025 include manufacturing, aerospace, medical, and work in harsh environments.

‍

The lightweight yet rigid structure allows them to perform faster without sacrificing accuracy, making them ideal for sectors from mass manufacturing to high-tech medical work.

‍

Below are some of the most important applications in 2025:

1. Manufacturing and assembly

In modern manufacturing and assembly, carbon fiber arms are used for pick-and-place, welding, painting, and machine tending. The reduced vibration from the lightweight structure improves accuracy during repetitive tasks, which is essential for electronics assembly and automotive component production.

Because the arms move faster with less strain on motors, factories can increase throughput without upgrading to larger actuators. The ability to work in compact spaces also means carbon fiber arms fit smoothly into high-mix production lines.

2. Aerospace and automotive

In aerospace and automotive production, carbon fiber delta robot arms are especially useful for handling composite materials and lightweight components without deforming them. In aircraft manufacturing, they’re used for riveting, drilling, and assembling carbon fiber fuselage sections.

Automotive plants deploy them for rapid assembly of lightweight body panels, ensuring precise alignment while keeping cycle times low. Their stiffness means even large components can be handled without losing accuracy over time.

3. Medical and prosthetics

Medical engineers use carbon fiber arms to create advanced prosthetic limbs that combine high mobility with comfort for the wearer. The material’s low weight reduces fatigue for patients, while its rigidity ensures consistent performance.

In surgical robotics, carbon fiber mechanical arms help maintain precision in minimally invasive procedures, as their lightweight design reduces unwanted motion and improves control.

Their corrosion resistance also makes them ideal for sterile environments where regular sterilization cycles could damage metal components.

4. Harsh environments

In harsh environment industries like offshore oil and gas, chemical processing, or mining, carbon fiber arms can withstand prolonged exposure to moisture, salt, and chemical vapors without degradation. They also perform well in extreme temperatures, making them suitable for arctic exploration or desert-based solar farm maintenance.

Some specialized versions are built for hazardous material handling, keeping operators safe while maintaining full operational capacity.

‍

Carbon fiber robot arm vs. traditional materials

Comparing a carbon fiber robot arm vs. traditional materials like aluminum and steel shows clear performance advantages despite higher upfront costs.

The table below compares these materials on key factors relevant to industrial and specialized robotics:

‍

What affects the cost of a carbon fiber robot arm?

The cost factors for a carbon fiber robot arm in 2025 include material and fabrication costs, payload requirements, reach, precision, and integration needs.

While official prices vary by brand and configuration, industry sources show that carbon fiber arms generally cost more upfront than aluminum or steel versions, but can save money over their lifespan through lower energy use and reduced maintenance.

• Material and fabrication cost: Carbon fiber-reinforced polymers require precision layup, curing, and finishing, making them more expensive to produce than machined aluminum or steel.
  ‍
• Custom vs. off-the-shelf arms: Custom designs for specialized industries (e.g., aerospace or prosthetics) often cost significantly more due to engineering time and tooling.
  ‍
• Payload, reach, and precision: Higher load ratings, longer reaches, and tighter repeatability tolerances add to the price.
  ‍
• Integration and compatibility: Costs can increase if the arm needs to be adapted to an existing control system or fitted with custom end-of-arm tooling.
  ‍
• Long-term savings: The reduced mechanical stress and corrosion resistance of carbon fiber arms often mean fewer part replacements and lower total cost of ownership.

‍

Popular carbon fiber robot arm examples

Carbon fiber technology is now used in a range of robotic arms, from high-speed industrial delta robots to lightweight prosthetic limbs.

These examples highlight how the material’s low weight, high stiffness, and corrosion resistance are applied in different sectors.

• Carbon fiber delta robot arms: Common in high-speed packaging lines and electronics assembly, these arms use lightweight linkages to achieve rapid pick-and-place without sacrificing accuracy. Their reduced inertia allows for shorter cycle times and smoother operation in 24/7 production.
  ‍
• Carbon fiber prosthetic arms: Designed for everyday use, these arms offer excellent mobility and comfort for wearers. The low weight reduces fatigue, while the high stiffness ensures predictable, controlled motion. This is important for both everyday tasks and sports activities.
  ‍
• Lightweight robotic arms for cobots: In collaborative environments, lighter arms reduce the risk of injury and allow for faster, safer movements. They also put less strain on the cobot’s base actuators, extending service life and lowering maintenance needs.
  ‍
• Custom carbon fiber arms: Used in specialized applications such as drone-mounted repair and inspection tools, these arms need to be as light as possible to extend flight time while remaining rigid enough to handle tools or sensors in midair.

‍

Summing up: Choosing the right carbon fiber arm for your operation

Choosing the right carbon fiber robot arm comes down to matching its capabilities to your workload, environment, and precision needs. Although they cost more upfront than metal-based designs, their speed, durability, and efficiency gains often justify the investment.

When evaluating options, pay close attention to:

• Payload capacity: Make sure it can handle your heaviest anticipated loads without compromising speed or accuracy
  ‍
• Reach: Choose an arm length suited to your work cell layout to avoid unnecessary repositioning
  ‍
• Stiffness and repeatability: Look for arms with minimal deflection under load and tight positional accuracy for precision tasks
  ‍
• Environment compatibility: For corrosive or sterile conditions, confirm the arm’s material and coatings meet industry standards

In many cases, carbon fiber becomes the smarter choice when lightweight performance and long-term reliability are more valuable than the lowest purchase price.

‍

Next steps with Standard Bots’ robotic solutions

Looking to upgrade your automation game? Standard Bots’ RO1 is the perfect six-axis cobot addition to any high-precision setup, delivering unbeatable precision and flexibility.

• Affordable and adaptable: RO1 costs $37K (list price). Get high-precision automation at half the cost of traditional robots.
  ‍
• Precision and power: With a repeatability of ±0.025 mm and an 18 kg payload, RO1 handles even the most demanding industrial tasks.
  ‍
• AI-driven simplicity: Equipped with AI capabilities on par with GPT-4, RO1 integrates smoothly with modern automation systems for advanced performance.
  ‍
• Safety-first design: Machine vision and collision detection mean RO1 works safely alongside human operators.

Book your on-site demo with our engineers today and see how RO1 can bring AI-powered greatness to your shop floor.

‍

FAQs

1. How much does a carbon fiber robot arm cost on average?

The average cost of a carbon fiber robot arm in 2025 is $25,000 to $80,000+, depending on payload, reach, and precision. High-spec models for aerospace, semiconductor, or medical applications can go higher because of specialized tooling and strict performance requirements.

2. How is a carbon fiber robot arm manufactured?

A carbon fiber robot arm is manufactured by weaving carbon filaments into sheets, embedding them in polymer resin, and molding the pieces into arm components. These are then cured under heat and pressure to create a strong composite, before being CNC-machined to precise tolerances for balance, durability, and smooth motion.

3. What ongoing maintenance does a carbon fiber robot arm require?

A carbon fiber robot arm requires periodic lubrication of joints, calibration checks, and inspection of actuators and wiring. Unlike steel or aluminum arms, the carbon fiber body doesn’t need anti-corrosion coatings or paint, which lowers both maintenance costs and downtime.

4. Can carbon fiber robot arms operate in cleanroom or sterile environments?

Carbon fiber robot arms can operate in cleanroom or sterile environments because the surface is smooth, low-shedding, and resistant to sterilization chemicals. This makes them suitable for use in semiconductor fabs, pharmaceutical packaging, and surgical robotics.

5. What is the maximum payload a carbon fiber robot arm can handle?

The maximum payload a carbon fiber robot arm can handle is usually between 5 kg and 20 kg, depending on the model and motor strength. Heavy-duty industrial designs with reinforced joints and high-torque actuators can exceed this range in custom setups.

6. How does carbon fiber construction improve a robot arm’s energy efficiency?

Carbon fiber construction improves a robot arm’s energy efficiency by reducing the arm’s total weight. This means the motors need less torque to move, which lowers power consumption, reduces heat buildup, and allows for faster, smoother motion cycles.

7. Is carbon fiber recyclable or reusable at the end of the robot arm’s life?

Carbon fiber is recyclable at the end of a robot arm’s life through specialized chemical or thermal recovery processes. The recovered fibers are often reused in secondary manufacturing, such as automotive panels, sporting goods, or lightweight structural components.

8. Can existing metal robot arms be retrofitted with carbon fiber components?

Existing metal robot arms can be retrofitted with carbon fiber components like links, covers, or tool mounts. Before retrofitting, compatibility with the existing actuators, balance, and control software needs to be verified to maintain safety and performance.
