A hydraulic robotic arm is built for one thing, and that is raw power.
Using pressurized fluid instead of motors or air, it delivers massive force in a compact frame. That is why they are trusted in places where electric or pneumatic arms cannot keep up.
From metal stamping to welding oversized parts to lifting materials that weigh several tons, these arms take on the toughest jobs. They may not match the precision of electric systems, but when nonstop strength in harsh environments is required, hydraulic robotic arms remain the clear choice.
What is a hydraulic robotic arm?
A hydraulic robotic arm is an industrial robot that uses pressurized hydraulic oil to move pistons in cylinders and drive its joints. A pump, control valves, actuators, and a reservoir work together to deliver far more force per size than electric or pneumatic arms, which helps in applications that handle parts weighing hundreds of kilograms.
Hydraulic robotic arms consist of key components like:
- Control valves
- A fluid reservoir
- A hydraulic pump
- Actuators (cylinders)
The pump sends pressurized fluid through the system, while valves direct it to specific cylinders. This pushes pistons and creates powerful motion at each joint. Industries like automotive and mining rely on these arms for their unmatched lifting capacity.
While electric arms offer better precision and cleaner operation, hydraulic arms excel when raw strength is non-negotiable. They're also more resistant to shock, dirt, and temperature extremes than electric systems.
How does a hydraulic arm work?
A hydraulic arm works by converting fluid pressure into mechanical motion using a system of pumps, valves, cylinders, and pistons driven by Pascal’s law. This law states that when pressure is applied to a fluid in a confined space, that pressure is transmitted equally in all directions.
The result is that a small amount of input pressure can produce a massive output force. That’s what gives hydraulic robotic arms their reputation for strength.

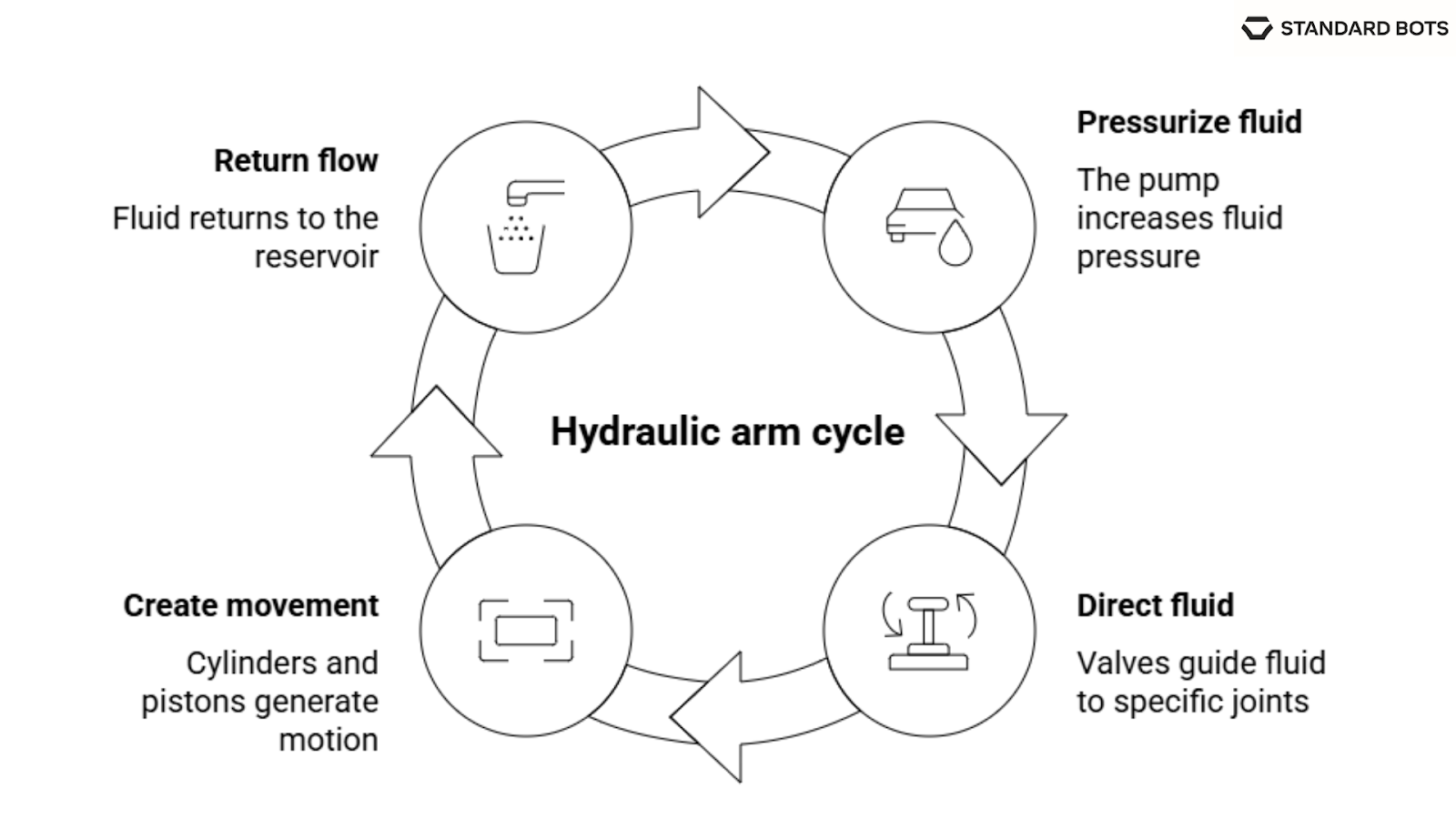

Here’s how the system functions, step by step:
1. Hydraulic pump pressurizes the fluid. The process begins with a hydraulic pump, usually powered by an electric motor or engine. This pump draws hydraulic fluid from a reservoir and forces it into the system under high pressure. The fluid is typically oil, chosen for its stability, lubricating properties, and ability to handle heat.
2. Valves direct fluid to specific joints. Valves route pressurized fluid to the target actuator based on controller commands, which determine whether the shoulder, elbow, wrist, or end effector moves
3. Cylinders and pistons create movement: When the fluid enters a hydraulic cylinder, it pushes against a piston sealed inside. Because fluids don’t compress, the pressure causes the piston to extend or retract. This linear motion is then converted into rotational or pivoting movement at the joints, enabling the arm to lift, lower, rotate, or press with force.
For example, if you want the robotic arm to lift a 300 kg metal block, the controller signals the valves to channel fluid to the arm’s lifting cylinder. The piston pushes out, raising the arm segment, while other parts stay stationary or adjust as needed.
4. Return flow completes the cycle. As one side of the piston is pressurized, the other side releases fluid back into the reservoir, maintaining a closed loop. The system continuously adjusts the fluid pressure and valve positions to control the speed and force of movement. This is especially important in tasks like forging, welding, or pushing large components into place.
Why does this setup work? Hydraulic systems multiply force efficiently, turning modest input pressure into a large output force at the joint. This is why hydraulic robotic arms are still widely used in applications where lifting 500 kg or more is routine.
Key applications and industries
Industries that use hydraulic robotic arms include heavy manufacturing units that demand high force, long cycles, and resilience under stress. Unlike electric or pneumatic arms, these systems can generate massive output force without needing large motors or complex gearboxes.
Automotive manufacturing
In automotive plants, hydraulic arms handle the heaviest parts of the assembly process. They lift the entire car chassis, engine blocks, stamping dies, and press tools. During body-in-white assembly (where the car’s frame is welded together), these arms press and hold components with tons of force, ensuring panel alignment and weld accuracy.
Their power density often lets one hydraulic station replace several lighter electric arms, which is why they remain common in heavy-lift cells.
Metal fabrication and welding
Metalworking environments rely on hydraulic arms for tasks like forging, cutting, pressing, and positioning large steel or aluminum components. For instance:
- In steel fabrication yards, they handle beams or plates for bending and welding.
- In forging plants, they grip and move red-hot metal billets into high-tonnage presses.
- In heavy welding operations, hydraulic arms can hold or rotate multi-ton pieces for better weld angles and ergonomic access.
Electric or pneumatic arms simply don’t offer the continuous force required to handle such dense materials or endure the vibration and thermal load of these processes.
Packing and palletizing in logistics
Hydraulic arms are common in high-load packaging zones, where boxes, drums, or metal crates need to be loaded onto pallets or into shipping containers. They’re often used at the end of heavy-duty conveyor lines or as part of automated warehouse systems that move bulky, fragile, or irregular items.
Electric arms excel at rapid 10 to 20 kg handling, while hydraulic arms suit repetitive moves with loads in the hundreds of kilograms and can sustain longer high-force cycles without thermal derating.
Harsh and remote environments
Some of the most compelling use cases for hydraulic robotic arms come from settings where electronics fail or maintenance is difficult:
- Subsea engineering: Hydraulic manipulator arms on remotely operated vehicles (ROVs) are used for pipeline maintenance, marine sampling, and drilling operations at ocean depths where pressure and saltwater corrode electrical parts.
- Mining: Robots equipped with hydraulic arms work in underground tunnels to clear debris, position support beams, or operate cutting heads in dusty, abrasive conditions.
- Hazardous zones: In military or nuclear applications, hydraulic robots are preferred because they can tolerate radiation, fire, or chemical exposure without short-circuiting.
In all these roles, the hydraulic arm’s brute strength and ability to withstand environmental stress offer advantages that precision-focused electric arms cannot match.
Advantages of hydraulic robotic arms
High strength, durability, and the ability to run nonstop in tough environments are the main advantages of hydraulic robotic arms. These arms are purpose-built for industrial jobs that demand force, endurance, and reliability.
- Can lift extremely heavy loads: Hydraulic arms are powered by pressurized fluid, allowing them to lift and move multi-ton components with ease.
- Work well in harsh environments: They’re built to handle dust, heat, vibration, and even moisture, making them a strong choice for mining, metalwork, or outdoor use.
- Handle long, high-force cycles: Hydraulic systems resist thermal derating during extended heavy work better than many electric motor drives.
- Stay strong even in extreme conditions: These arms keep working underground, underwater, or in hazardous zones where electric systems may fail.
- Offer long-term value for heavy tasks: Although expensive to install, they reduce the need for extra equipment and pay off in long-term durability and power.
Disadvantages of hydraulic robotic arms
High maintenance needs, lower precision, and environmental concerns are the main disadvantages of hydraulic robotic arms. These challenges matter in setups where speed, cleanliness, or accuracy is critical.
- Require frequent maintenance: Hydraulic arms need regular upkeep, including checking hoses, replacing seals, and managing fluid levels.
- Risk of leaks and spills: If a hose breaks or a seal fails, hydraulic fluid can leak, which may create safety hazards or damage surrounding systems.
- Lack high precision: These arms are not ideal for tasks that involve tight tolerances or delicate object handling.
- Respond slower than electric arms: The fluid-based movement takes more time to adjust, which limits speed and fine control.
- Costs more to run: Between energy use and maintenance, hydraulic systems are often more expensive to operate over time.
When to choose hydraulic over electric or pneumatic arms
Hydraulic arms are ideal when your task demands brute strength, long-duty cycles, and operation in tough environments.
Here’s a direct comparison to help you decide which type fits your application best:
Bottom line
Go with hydraulic arms when raw power and environmental toughness are must-haves. Choose electric arms for accuracy, speed, and sensor integration. Use pneumatic arms for fast, light, and repetitive tasks where cost and simplicity matter most.
Summing up
Hydraulic robotic arms deliver unmatched strength and durability, making them essential in heavy-duty industrial automation. Whether you’re lifting car frames, working deep underground, or managing high-heat fabrication lines, these arms do the job where others can’t.
But they come with their own set of challenges. Hydraulic arms require more maintenance, offer less precision, and use more energy than electric or pneumatic systems. They're not right for every application, but when power and endurance outrank precision and cleanliness, hydraulic arms are often the best choice.
Next steps with Standard Bots’ robotic solutions
Looking to upgrade your automation game? Standard Bots Core is the perfect six-axis cobot addition to any heavy-lift or machine-tending workflow, delivering unbeatable precision and flexibility.
- Affordable and adaptable: Core costs $37K. Get high-precision automation at half the cost of traditional robots.
- Precision and power: With a repeatability of ±0.025 mm and an 18 kg payload, Core handles even the most demanding industrial jobs.
- AI-driven simplicity: Equipped with AI capabilities on par with GPT-4, Core integrates smoothly with industrial systems.
- Safety-first design: Machine vision and collision detection mean Core works safely alongside human operators.
Schedule your on-site demo with our engineers today and see how Core can bring AI-powered greatness to your shop floor.
FAQs
1. What is a hydraulic robotic arm?
A hydraulic robotic arm is a heavy-duty industrial robot powered by pressurized fluid instead of electric motors or compressed air. These arms use pumps, cylinders, and valves to create strong, smooth motion at each joint. They’re built for jobs that require lifting and pressing large, heavy parts, such as automotive assembly or metal fabrication.
2. How does hydraulics generate motion in robot arms?
Hydraulics generate motion in robot arms by pushing fluid into sealed cylinders, which moves pistons that drive the joints. This system works based on Pascal’s law, where pressure applied to a confined fluid spreads evenly, producing a large mechanical force. Valves direct the flow to different actuators depending on the movement required.
As the piston extends or retracts, it rotates or lifts parts of the arm. This makes it possible to lift loads far heavier than what most electric or pneumatic systems can manage.
3. What are the advantages of hydraulic arms over electric models?
The advantages of hydraulic arms over electric models include higher force density, ruggedness, and endurance. Hydraulic systems can lift multi-ton loads without requiring bulky motors or gearboxes. They are better suited for extreme environments, tolerating heat, dirt, vibration, or even radiation where electric systems may fail. Hydraulic arms also hold heavy positions without drift, making them ideal for heavy manufacturing, mining, and outdoor industrial tasks.
4. What are the common limitations of hydraulic robotic arms?
The common limitations of hydraulic robotic arms are high maintenance needs, slower speed, and lower precision. Fluid leaks from hoses or seals can cause safety risks and downtime, and the system requires regular checks of fluid levels and seals. Hydraulic movement is less responsive than electric drives, which limits fine control. These drawbacks make hydraulic arms unsuitable for clean rooms, electronics assembly, or high-speed precision tasks.
5. How to maintain a hydraulic robotic arm safely?
To safely maintain a hydraulic robotic arm, technicians must inspect hoses, check fluid levels, and look for early signs of wear or leaks. All maintenance should follow lockout or tagout procedures to avoid accidents during inspection. Hydraulic systems must stay clean of any dirt or contamination in the fluid can damage pistons or valves.
It’s also important to check that the robot controller is properly regulating pressure and movement. Preventive maintenance helps extend the life of the system and ensures stable, powerful operation.
