Vision inspection systems: What they are and how they work

A vision inspection system uses cameras, lighting, and software to detect, measure, and verify parts directly on the production line.

The global demand for vision inspection systems is rising fast, with the machine vision market projected to surpass $41.744 billion by 2030.

In 2025, they're survival gear for manufacturers drowning in quality audits, compliance paperwork, and “we need it yesterday” production schedules. While human inspectors squint at their 500th widget of the day (and probably miss that hairline crack), machine vision systems catch defects without coffee breaks, sick days, or that post-lunch productivity dip.

From spotting dodgy welds on car frames to making sure your yogurt lid is actually sealed, these systems have basically become the quality control department's favorite employee.

What is a vision inspection system?

A vision inspection system is an automated system using industrial cameras, lenses, lighting, and image processing software to “see” and analyze products during manufacturing. It replaces manual inspection to detect defects, verify labels, measure dimensions, and ensure quality and consistency at high speeds.

Unlike manual inspection, which depends on human eyesight and attention span, a robotic vision system runs continuously with the same level of precision. This reduces errors caused by fatigue or inconsistency.

On bottling lines, smart cameras verify cap presence, label position, and date codes at line speeds that commonly exceed 30,000 bottles per hour. That’s why vision systems for quality inspection are widely adopted across manufacturing, packaging, and logistics.

How do vision inspection systems work?

Vision inspection systems work through a 5-step cycle that captures images, analyzes them against quality standards, and takes action based on the results. Each product moving through the line triggers the same sequence, creating consistent, high-speed quality checks without human judgment calls.

1. Product positioning: The part moves into the inspection zone via conveyor, robot arm, or manual placement. Sensors detect when the product is in position and trigger the camera.

2. Image capture: Cameras record high-resolution images of the product. The system may use 2D cameras for surface checks or 3D sensors for depth and geometry. Controlled lighting ensures edges, labels, and defects appear clearly without shadows or glare.

3. Image processing: Software analyzes the captured images using algorithms and AI. It compares the product against preset standards, checking for defects, measuring dimensions, or verifying labels and barcodes.

4. Decision and action: The system makes a call: pass, fail, or sort. If a defect is detected, it can trigger a reject mechanism, stop the line, or flag the item for manual review. Passing products continue downstream.

5. Data logging: Inspection results are stored automatically. This creates a digital record for audits, compliance, and process optimization. This repeatable process runs continuously at high speed, replacing subjective human judgment with consistent analysis across thousands of parts per hour.

Benefits of machine vision inspection

The benefits of machine vision inspection include higher accuracy, faster speed, lower costs, safer workplaces, and stronger compliance. These advantages explain why more manufacturers are replacing manual checks with automated vision systems in 2025.

• Consistent accuracy: Vision systems check every product with the same standard, removing human subjectivity. They detect even small defects that the human eye might miss, ensuring reliable quality.
  ‍
• Faster inspection speed: Automated vision systems process thousands of parts per hour without slowing down. This keeps production lines running smoothly and reduces bottlenecks.
  ‍
• Lower costs: By catching defects early, manufacturers avoid waste, rework, and product recalls. Over time, this reduces overall production costs and improves ROI.
  ‍
• Improved workplace safety: Machine vision inspection eliminates the need for workers to perform repetitive, eye-straining checks. This reduces fatigue and lets employees focus on higher-value tasks.
  ‍
• Compliance and traceability: Many systems log inspection results automatically, creating a digital record for audits or regulatory requirements. This is especially valuable in industries like pharmaceuticals and food.

Applications across industries

The applications of vision inspection systems reach across nearly every industry where speed, compliance, and reliability are business-critical.

From car factories to food plants, companies are already proving the value of automated vision systems with measurable results.

Automotive

In the automotive sector, vision inspection systems are essential for weld, paint, and assembly checks. BMW, for example, uses Vitronic’s optical seam inspection on its 5 Series production line to detect even the smallest weld irregularities before vehicles reach final assembly. This kind of real-time feedback prevents costly recalls and helps automakers meet global safety standards.

Tesla is deploying vision-based inspection robots to catch paint and panel alignment issues. Toyota’s use of AI/Deep Learning vision systems now performs over 60 inspection points per vehicle with a dozen high-speed cameras.

Electronics

Electronics manufacturing demands extreme precision, especially when it comes to printed circuit boards (PCBs). Automated optical inspection systems check solder joints, component placement, and micro-cracks at resolutions as fine as 5 to 12 micrometers.

This level of detail ensures that even the smallest defects are caught before boards move into costly downstream assembly. For device makers, this not only improves yield but also reduces the risk of failures in consumer products where reliability is non-negotiable.

Pharmaceuticals

Pharmaceutical plants use vision inspection to safeguard both patients and compliance. SEA Vision’s deployment on Marchesini blister packaging lines checks every pill pocket for completeness, verifies batch codes, and logs data for FDA and EMA audits.

This not only reduces human error but also provides full traceability, which is a critical requirement under global serialization laws. Systems like these process hundreds of packs per minute without slowing production.

Food and beverage

Food and beverage plants use vision inspection to monitor fill levels, cap seals, and label accuracy at production speeds. EPIC Systems reports smart cameras inspecting bottles at 900 units per minute on a soft drink bottling line to verify cap position, tamper bands, and date codes.

Keyence describes similar fill-level inspection systems that also store image data, creating a digital trail that supports recalls and compliance checks. Together, these tools reduce waste, prevent mislabeling, and build stronger consumer trust.

Packaging and logistics

Packaging and logistics teams use vision inspection to keep parcels moving accurately at high speed, even when labels are scuffed or angled. Cognex’s image-based readers decode damaged or low-contrast barcodes at extreme angles and on fast lines, achieving very high read rates in production settings.

In parcel and fulfillment operations, fixed-mount, hands-free scanners raise throughput and reduce manual rescans. Cognex documents logistics deployments where DataMan readers increased inbound package volume scanned and improved read rates after moving to hands-free stations with centralized device monitoring.

Cost of vision inspection systems

Vision inspection systems range from $15k to $250k, depending on complexity. Most manufacturers see payback within 6 to 18 months through reduced waste and labor costs.

• Entry-level ($15k to $40k): Single camera setups for label checks and basic pass/fail inspection. Works for packaging lines and low-volume operations.
• Mid-range ($40k to $100k): Multi-camera systems with 2D or 3D vision. Used in electronics assembly, food packaging, and parts inspection.
• High-end ($100k to $250k+): AI-driven inspection with multiple 3D cameras and full line integration. Common in pharmaceutical, PCB, and automotive applications.

Integration adds 20 to 40% on top of hardware. Annual maintenance runs 10–15% of system cost.

A medical device maker producing heart stents boosted 65% inspection accuracy after switching from microscope-based manual checks to automated vision systems.

Challenges in vision inspection deployment

Vision system deployment slows down due to lighting problems that create false reads, detection settings that reject good parts, material inconsistencies that confuse algorithms, and integration headaches with older equipment. All four have straightforward fixes.

Lighting problems

Reflective surfaces, transparent materials, and inconsistent ambient light cause the most headaches. The system may reject good parts or miss actual defects when lighting isn't controlled.

Solution: Use diffused LED lighting to eliminate hot spots. Polarized filters cut glare on shiny surfaces. Dome lighting works well for curved or complex geometries.

False positives

Overly sensitive detection settings reject good parts and slow throughput. This happens most often during initial setup before thresholds are properly tuned.

Solution: Run validation batches with known good and bad parts. Adjust detection sensitivity based on real production data, not theoretical specs.

Material variability

Parts with inconsistent colors, textures, or finishes confuse older vision algorithms. This is common in cast metals, textiles, or natural materials.

Solution: Choose AI-based systems trained on diverse sample sets. Multi-angle cameras capture more data points and reduce blind spots.

Integration with legacy equipment

Connecting vision systems to older PLCs or outdated conveyors adds weeks to deployment. Communication protocols may not match, or physical mounting points may need custom fabrication.

Solution: Work with vendors who offer plug-and-play compatibility with common industrial protocols. Bring in a controls integrator early if your equipment predates 2010.

Choosing the right system

Choosing the right inspection robot means focusing on speed, accuracy, scalability, integration, and compliance. Each of these factors helps determine whether the system will actually deliver results on your production floor.

• Speed: Make sure the system can keep up with your line. Cameras and software should process images quickly enough to avoid creating bottlenecks.
• Accuracy tolerance: Define how precise the inspection needs to be. Electronics and PCB checks may require micrometer-level accuracy, while packaging tasks can work with looser thresholds.
• Scalability: Pick a system that can grow with you. If you expand product lines or increase volume, the setup should handle upgrades without requiring a full rebuild.
• Integration ease: The system should connect smoothly with your existing conveyors, robots, or PLCs. Complicated integration adds unnecessary cost and delays.
• Data and compliance: Look for automated reporting tools. Digital logs simplify audits and support regulatory compliance in industries like pharma and food.

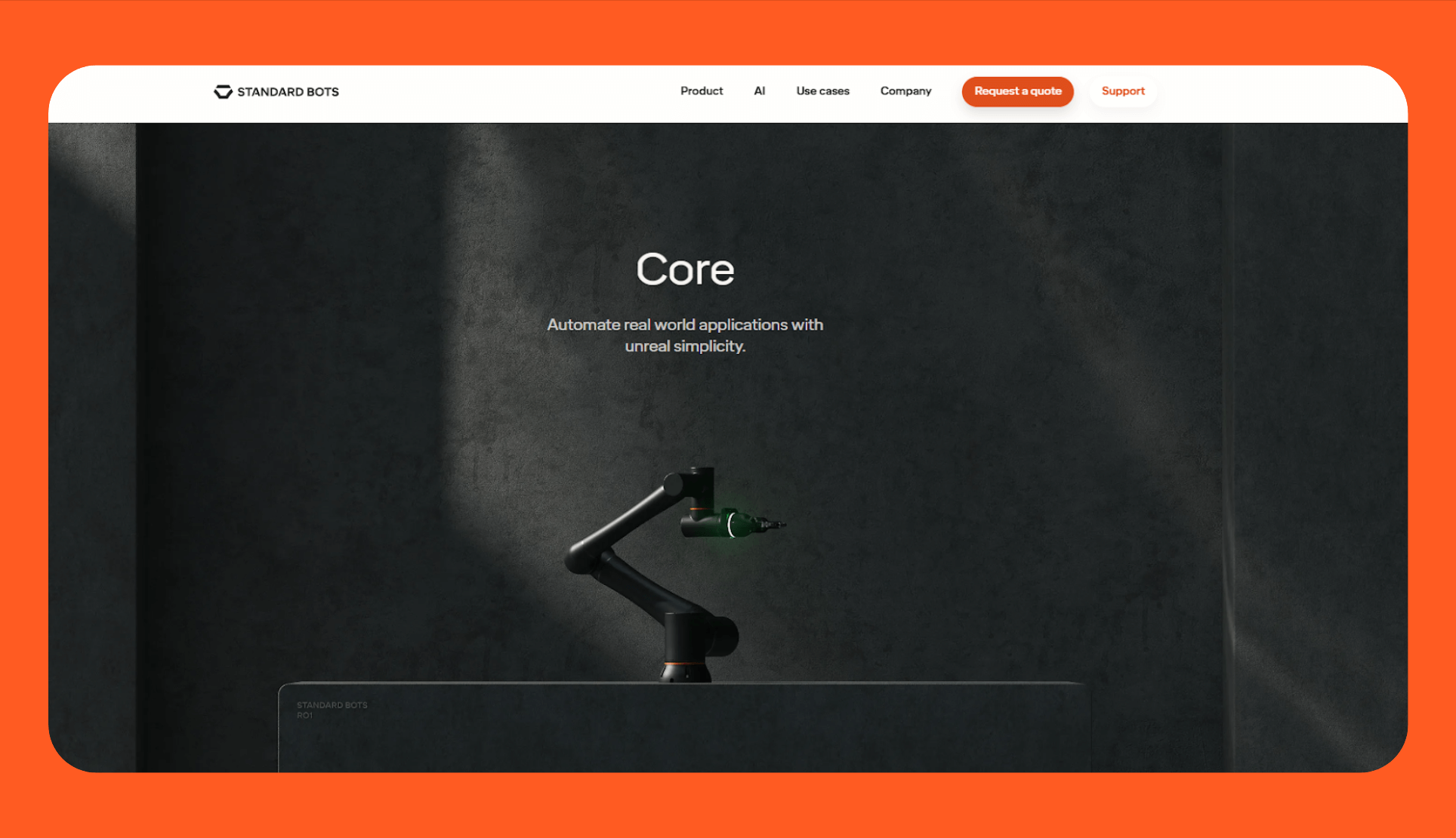

Vision inspection with Standard Bots Core

Vision inspection with Standard Bots Core combines advanced 3D vision, built-in software, and easy programming to make quality checks practical for manufacturers of all sizes. Instead of relying on bolt-on systems, Core ships ready with integrated vision tools.

• Built-in 3D vision: Standard Bots Core includes native 3D vision that captures depth, geometry, and surface features. This makes it effective for tasks like part orientation, defect detection, and pick-and-place verification.
  ‍
• Integrated hardware and software: Unlike robots that require third-party add-ons, Core bundles vision, safety features, and software into one package. This reduces complexity and keeps costs predictable.
  ‍
• Practical for manufacturers: With an 18 kg payload and ±0.025 mm precision, Core handles real production demands while still being compact enough for high-mix, low-volume cells. The all-in-one design makes automation accessible even for smaller teams.
  ‍

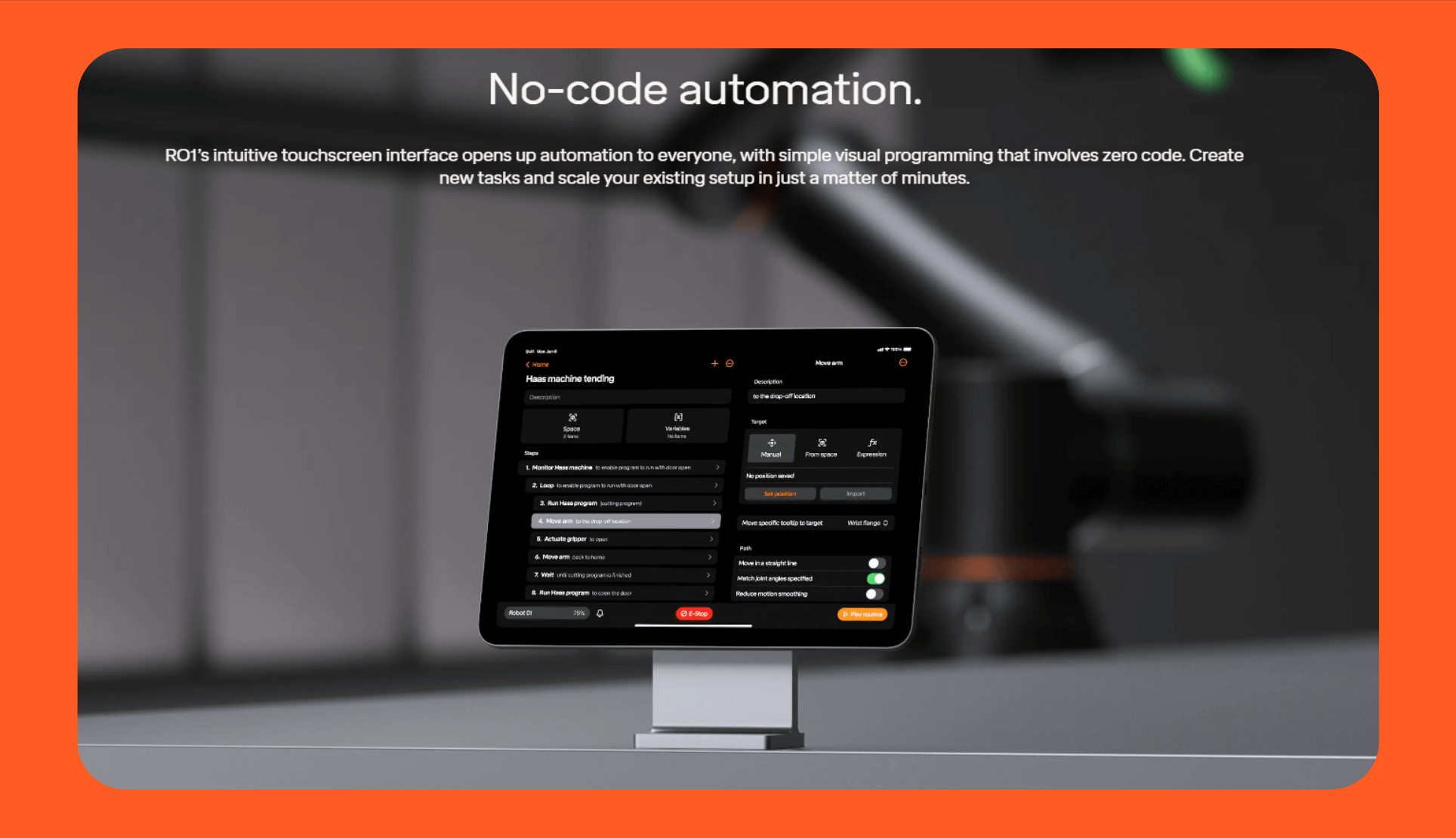

• No-code programming: Operators can set inspection points and logic directly from the touchscreen without writing code. That means faster setup and less reliance on specialists.

Summing up

Vision inspection systems have become one of the most reliable ways to improve product quality, reduce costs, and stay compliant in 2025. By combining cameras, lighting, and smart software, they provide a level of accuracy and consistency no manual inspection can match.

For manufacturers, the payoff is fewer defects, faster throughput, and stronger customer trust. With integrated options like Standard Bots Core, even smaller operations can adopt vision without complicated add-ons. Now is the right time to explore automation, as waiting only delays the efficiency and ROI that vision systems already deliver.

Next steps with Standard Bots’ robotic solutions

Looking to strengthen your quality inspection? Standard Bots Thor is built for big jobs, while Core is the perfect six-axis cobot addition to any production line, delivering unbeatable throughput and flexibility.

• Affordable and adaptable: Core costs $37k. Thor lists at $49.5k. Get high-precision automation at half the cost of comparable robots.
• Perfected precision: With a repeatability of ±0.025 mm, both Core and Thor handle even the most delicate tasks.
• Real collaborative power: Core’s 18 kg payload conquers demanding palletizing jobs, and Thor's 30 kg payload crushes heavy-duty operations.
• AI-driven simplicity: Equipped with AI capabilities on par with GPT-4, Core and Thor integrate smoothly with manufacturing operations for advanced automation.
• Safety-first design: Machine vision and collision detection mean Core and Thor work safely alongside human operators.

Schedule your on-site demo with our engineers today and see how Standard Bots Core and Thor can bring AI-powered greatness to your shop floor.

FAQs

1. What is a vision inspection system in manufacturing?

A vision inspection system in manufacturing uses cameras, lighting, and software to automatically verify product quality. These robot vision systems detect defects, measure dimensions, and check labels at high speed without human fatigue, making them essential for modern production lines.

2. How does machine vision inspection differ from manual inspection?

Machine vision inspection differs from manual inspection by using cameras and algorithms instead of human eyesight. This removes subjectivity and fatigue, allowing systems to check thousands of parts per hour with consistent accuracy, while manual inspection slows down and misses subtle defects over time.

3. What’s the difference between 2D and 3D vision inspection?

The difference between 2D and 3D vision inspection is depth measurement. 2D systems capture flat images for surface checks like labels and barcodes. 3D systems measure geometry and depth for tasks like part orientation and weld inspection. Many manufacturers combine both for complete coverage.

4. How much does a vision inspection system cost?

A vision inspection system costs $15k to $250k, depending on complexity. Basic 2D setups start around $15k for packaging, while advanced 3D AI systems reach $250k for pharmaceutical and automotive applications. Integration adds 20–40% on top of hardware costs.

5. What industries benefit most from vision inspection systems?

Industries that benefit most from vision inspection systems include automotive, electronics, pharmaceuticals, food and beverage, and logistics. These sectors face strict compliance demands where even small defects trigger recalls, fines, or lost customer trust, making automated vision essential for quality control.
