Automatic welding can completely change production floors in manufacturing facilities. Here's everything you need to know about automatic welding systems and why they might be the upgrade your operation needs.
What is automatic welding?
Automatic welding uses machines or robots to weld without humans controlling the process. Once you set it up, the system follows a program that controls speed, position, and heat.
Automated welding uses robot arms, sensors, and smart tech to make precise, repeatable welds, again and again, until something breaks or needs maintenance. It’s not just a glorified on/off switch.
Here’s what makes automatic welding entirely different:
- Machines do most of the welding work: You load the parts, set the weld parameters, and the robot takes over.
- Brings together robotic arms, sensors, and even AI: Vision systems get you near-perfect alignment, sensors track every parameter, and AI-driven robots like Standard Bots Core tweak their approach mid-process if things start to go off track.
This works best for high-volume jobs where you're making numerous identical parts. If you're doing custom one-offs, the setup time isn't worth it.
Types of automatic welding
The types of automatic welding are mechanized, semi-automatic, fully automatic, robotic welding or cobots, and automated non-robotic. The main difference is how much control you hand over to the system. Here’s an overview:
Let’s look at each type in more detail:
- Mechanized welding: Automated equipment controls speed, arc stability, and travel motion according to programmed parameters. Operators may manually adjust parameters during welding to maintain proper positioning, but they do not continuously guide the welding gun or travel direction. This distinguishes it from semi-automatic welding.
- Semi-automatic welding: A human operator loads and positions the part when needed, then the automated system takes over and completes the welding process.
- Fully automatic welding: Once programmed, the system loads the parts, positions everything, and does the weld from start to finish. It’s the go-to for high-volume production lines.
- Collaborative welding: These setups use six-axis robotic arms that work safely alongside humans. Cobots follow complex weld paths and use sensors or vision systems to adapt to minor variations in positioning or materials. However, the advanced systems require a higher initial investment compared to standard automated welding equipment.
- Automated (non-robotic) welding: Once programmed, these systems perform the same weld patterns repeatedly on production lines. Unlike robotic welding, these machines do not use movable robot arms. Instead, they are specially designed equipment built for high-volume production and consistent weld quality.
Advantages of automatic welding
Automatic welding is mostly beneficial to shops or factory floors dealing with repetition, burnout, or quality issues. Here’s how automatic welding makes work easier (and yes, cheaper).
- Speed without the burnout: Automated systems can weld around the clock without needing breaks.
- Consistent quality: Machines don’t get tired, distracted, or disorganized. Once you dial in the right parameters, every weld looks like the last one.
- Fewer workplace hazards: Letting robots handle the hot, toxic parts of welding reduces exposure to fumes, sparks, or UV. This approach protects worker health and helps companies meet industrial automation safety standards and regulations.
- Not cheap upfront, but cost-effective over time: Over time, automation delivers measurable savings through reduced rework and scrap, improved worker safety (reducing injury-related claims), and the ability to run continuous 24/7 production without fatigue-related errors. Most manufacturers achieve ROI in 1–2 years through these combined improvements.
- It handles the repetitive welds: Skilled welders can focus their expertise on complex, high-value projects while robots efficiently handle routine, repetitive welds. This division of labor improves job satisfaction for welders and maximizes productivity across your operation.
Common industries & applications for automated welding
Auto shops, aerospace hangars, microchip factories, and pipeline yards are all using automated welding.

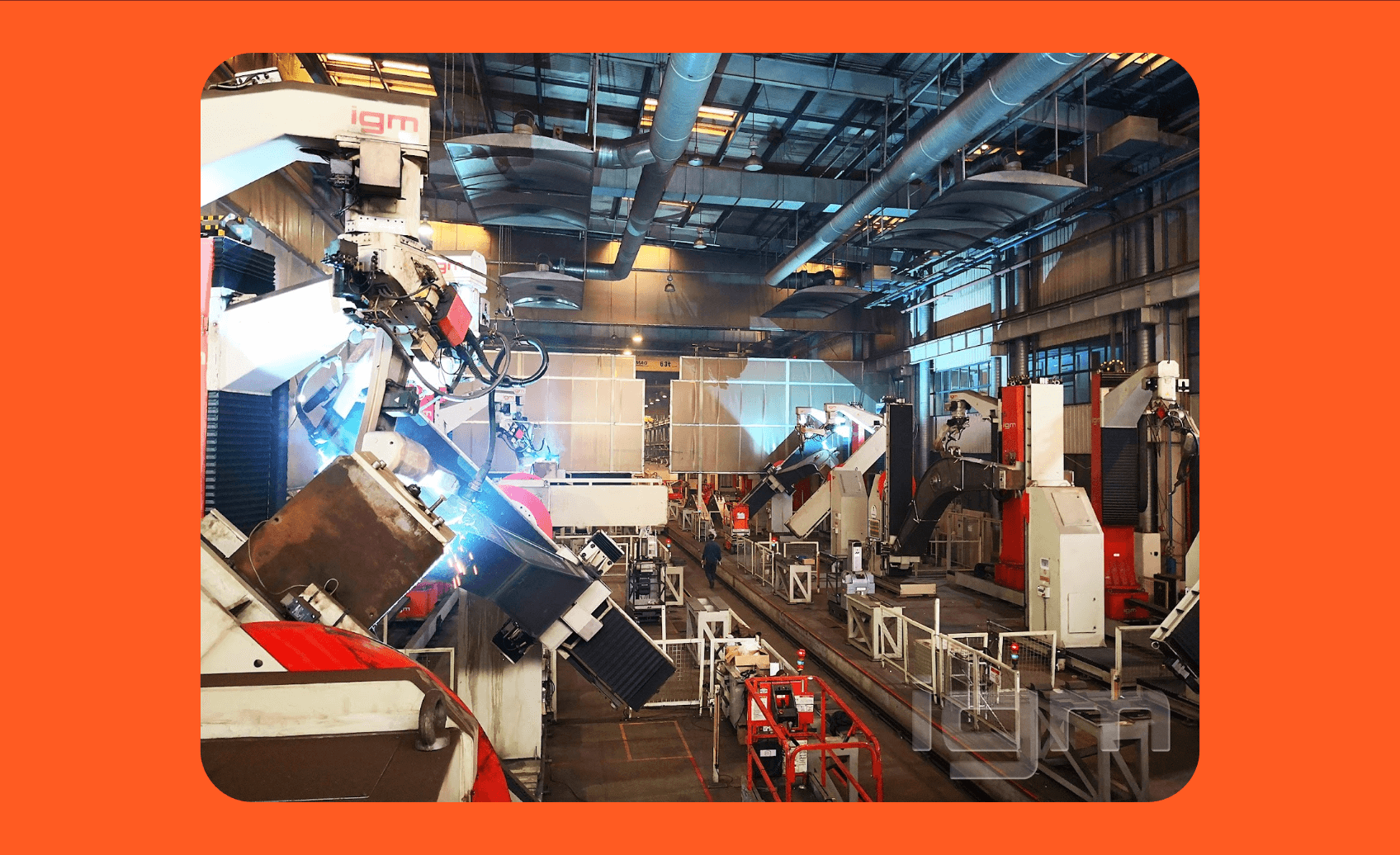

Automotive manufacturing
Every vehicle on the road contains thousands of welds. Automated welding systems are designed to meet the high-volume production demands of the automotive industry.
Welding automation systems handle body frames, exhaust systems, and chassis components with consistent accuracy that would be impossible to achieve manually at the required production scale.

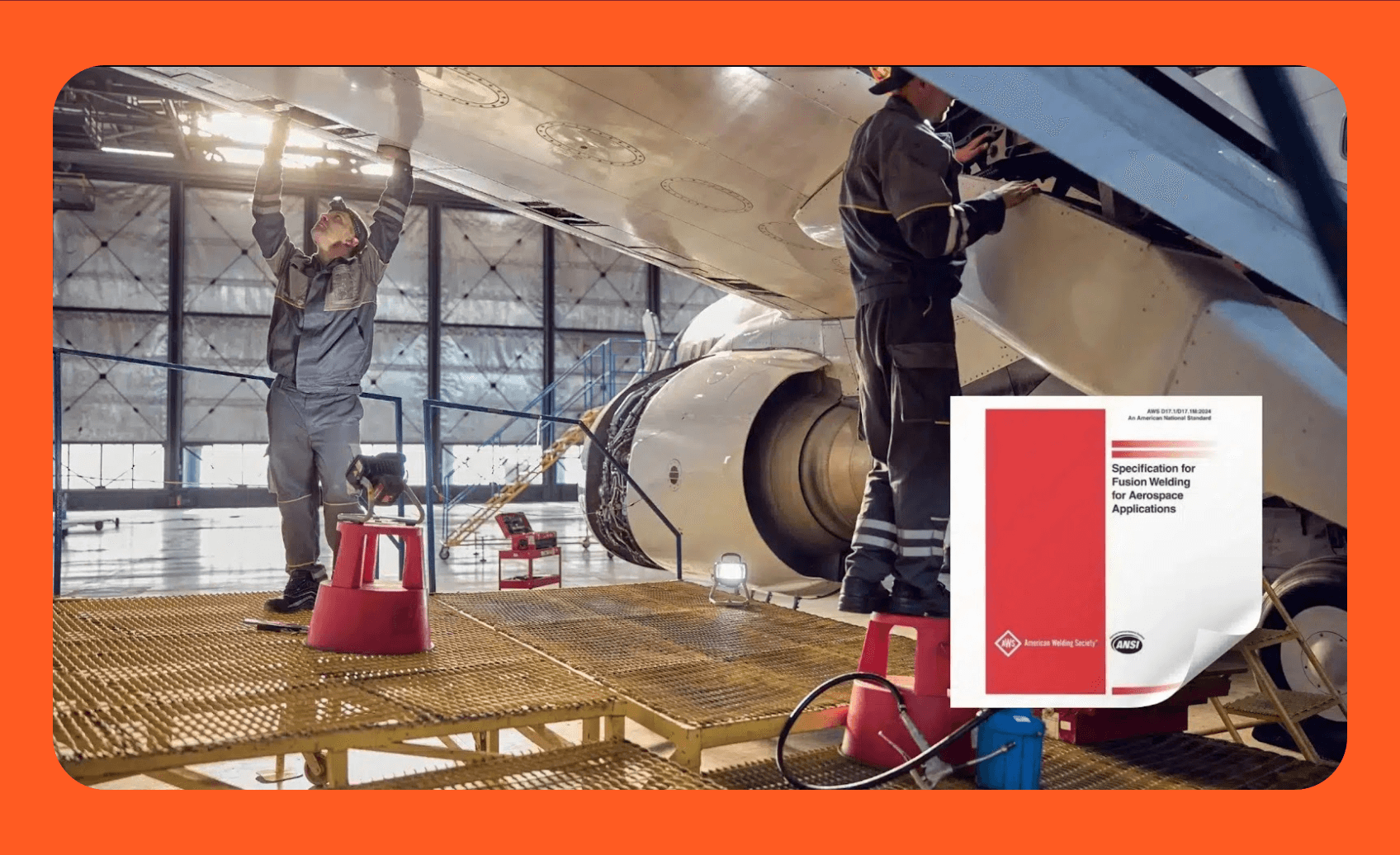

Aerospace and defense
In the aerospace and defense industries, precision is everything. Automated welding systems are essential for working with specialized metal alloys and meeting strict dimensional requirements. These systems are used to manufacture aircraft frames, fuel tanks, and engine components, where quality and accuracy are non-negotiable.
Construction
Welding structural steel is physically demanding work. Many construction firms now use robotic welding setups to produce large prefabricated pipe systems in controlled workshop environments before transporting them to job sites. This approach improves worker safety, increases productivity, and eliminates the need for workers to weld in uncomfortable positions or harsh weather conditions.
Energy
Tandem arc welding technology, developed by Cranfield University in partnership with BP, demonstrates the potential of advanced welding automation. For a proposed trans-Alaska gas pipeline project (distinct from the historical 1970s oil pipeline), BP estimated this innovative process could save approximately half a billion dollars from the projected $16 billion construction cost, achieving a 400% productivity increase with less equipment and fewer personnel.
Medical devices
Medical devices like pacemakers, insulin pumps, and neurostimulators require completely sealed welds that prevent leaks and electrical failures inside the body. Modern laser welding systems handle those tiny sealed joints with micron-level accuracy.
Challenges and limitations of automated welding
Automated welding tech works exceptionally well, but it takes money, setup, and calibration to get there.
- High initial costs: Robots are expensive, and so are the programs, sensors, and tooling that come with them. Even if the long-term payoff looks good, the upfront cost can deter smaller shops. Budget $35K to $75K+.
- Not exactly plug-and-play: You need to tune these systems, test them, write programs, and install vision systems or sensors when necessary.
- Flexibility drops when jobs vary: Robots handle repetition well, but not surprises. If your work changes often or involves tricky angles, automation can slow you down.
- Talent gap is problematic: You’ll need welders and techs who can program, run diagnostics, and troubleshoot code. That shift isn’t easy for every shop. Cobots like Standard Bots Core simplify operations, but an operator still needs to know the process.
- Maintenance is part of the deal: Automated welders operate at high temperatures and speeds, causing normal wear and tear. Without proper maintenance, expect downtime and equipment failures. Plan ahead by establishing a maintenance schedule, budgeting for replacement parts, and arranging technical support. This proactive approach minimizes disruptions and keeps equipment running efficiently.
How to implement welding automation
You implement welding automation by identifying your most common welds, choosing compatible robots and equipment, and setting up a safe workspace. Train an operator, maintain the system regularly, and design it to adapt to future production needs.
Here’s what a smart rollout looks like:
- Find the high-volume, repeatable welds and automate those first
- Match the robot to the job
- Avoid a mismatched setup
- Train a levelheaded operator
- Build safety in
- Maintain regularly
- Future-proof all operations
Step 1: Audit meticulously
Be fiercely honest. What parts get welded most often? Are they consistent, or do they change when designs are modified? High-volume, repeatable parts are perfect for automation. However, custom, one-off jobs and complex geometries are not.
Step 2: Pick the robot
A well-placed welding cobot like Standard Bots Core or Thor is all you need to scale effectively. Choose your robot based on its reach, precision, and whether it’ll fit in your available workspace.
Step 3: Focus on compatibility
Ensuring compatibility between components is critical to system success. When your torch, sensors, and controller cannot communicate effectively, the entire system becomes non-functional despite its cost.
Before starting operations, verify that all interfaces work together correctly, voltage requirements match across components, positioning systems are properly configured, and safety zones are established according to specifications.
Step 4: Train a levelheaded operator
Even no-code systems still need a person who can solve problems and make improvements. If your top welder or skilled employee can learn to operate and manage these systems, that's an excellent solution. If not, you'll need to hire someone with the right skills or provide training to current staff as soon as possible.
Step 5: Bake safety into the floor plan
If your robot moves, it could injure someone. Install proper fencing, safety barriers, and emergency stops. Unlike other robots, cobots are specifically designed to work safely alongside humans.
Step 6: Schedule maintenance
Welding produces sparks and hot metal debris. Your system will require regular maintenance. Keep necessary supplies in stock, clean motors regularly, calibrate sensors, and check system diagnostics on a routine schedule. Don't wait for equipment failure.
If you're purchasing a system, ask the vendor about your maintenance support and service options before making your decision.
Step 7: Future-proof all operations
Can your system handle new product lines, different materials, or increased production volumes? Effective automation requires flexible, modular planning, so you’ll need to think about how robots scale in modern manufacturing.
Don't invest significant money in a system that can't grow with your business. Consider your needs for the next few years before making a purchase.
What’s next for automated welding?
Automated welding is advancing toward AI systems that make real-time decisions using advanced sensors, high-speed cameras, and instant adjustments to prevent defects.
The next generation will include cloud-based connections and energy-efficient processes, enabling remote monitoring, predictive maintenance, and reduced environmental impact.
AI systems that make intelligent decisions
AI-powered systems make adjustments during welding, identifying problems before they ruin parts. Some systems are already using AI in TIG welding to optimize penetration depth and torch travel mid-weld without needing any human input.
Smarter sensors
New, highly accurate sensors monitor arc stability, temperature, and weld pool shape. With real-time monitoring, your robot can make micro-adjustments faster than a human operator can detect a problem.
When combined with high-speed cameras, these sensors create a highly advanced welding system.
Cloud connectivity
Cloud-connected systems enable remote diagnostics, live performance monitoring, and predictive maintenance alerts so you fix problems before your weld station causes downtime. This is especially useful in multisite factories where support teams are stretched thin.
Sustainable automatic welding
Future welding systems offer greater efficiency and environmental benefits. New technologies include torch systems that use less energy, better control of shielding gases, and automated welding processes that reduce waste.
These advances help minimize material loss and spatter during welding. While welding automation still involves high heat and challenging conditions, modern systems significantly reduce carbon emissions and environmental impact.
Summing up
Automatic welding replaces manual torch work with machines and robots that follow programmed parameters to deliver consistent, repeatable welds. These systems range from semi-automatic to fully automated, using sensors, cameras, and AI to maintain accuracy and adjust in real time.
Automation works best for high-volume production in automotive, aerospace, energy, construction, and medical industries. Notably, successful implementation requires identifying repetitive welds, choosing proper equipment, training operators, ensuring safety, and planning for growth.
New technology, including AI, sensors, cloud monitoring, and energy-efficient processes, enables defect prevention, predictive maintenance, and waste reduction, making welding more reliable, flexible, and sustainable.
Next steps with Standard Bots’ robotic solutions

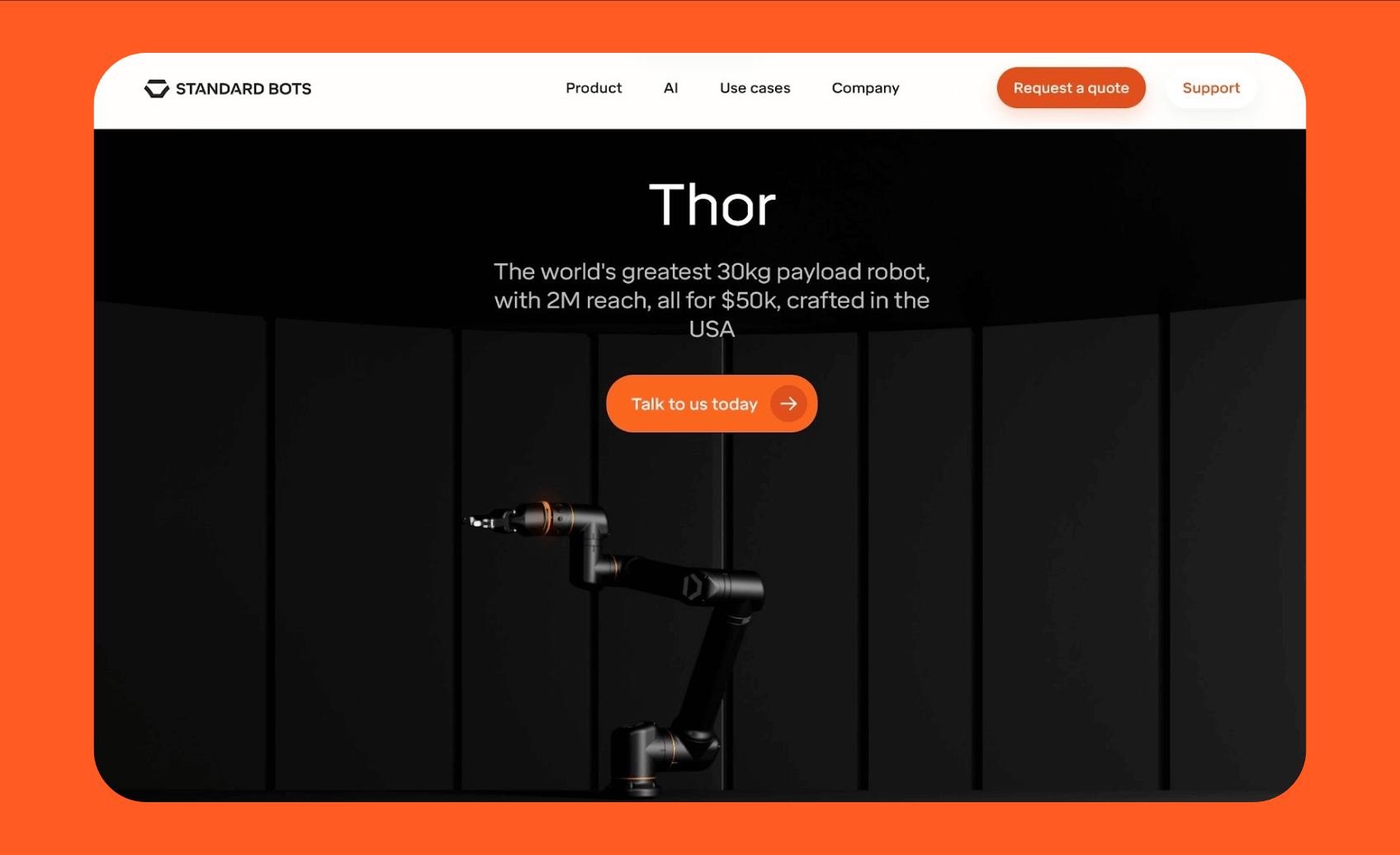

Looking to add automation to your welding process? Standard Bots Thor is built for big jobs, while Core is the perfect six-axis cobot addition to any automated operation, delivering unbeatable throughput and flexibility.
- Affordable and adaptable: Core costs $37k. Thor lists at $49.5k. Get high-precision automation at half the cost of comparable robots.
- Perfected precision: With a repeatability of ±0.025 mm, both Core and Thor handle even the most delicate tasks.
- Real collaborative power: Core’s 18 kg payload conquers demanding palletizing jobs, and Thor's 30 kg payload crushes heavy-duty operations.
- No-code simplicity: Our intuitive, no-code app makes it easy to teach Standard Bots robots to do everyday tasks. So, Core and Thor integrate smoothly with welding operations for advanced automation.
- AI-driven models: For complex, high-variance, and unpredictable tasks that are otherwise impossible to automate today, Standard Bots robots learn through our AI-driven vision-to-action models, similar to how full self-driving works.
- Safety-first design: Machine vision and collision detection mean Core and Thor work safely alongside human operators.
Schedule your on-site demo with our engineers today and see how Standard Bots Core and Thor can bring AI-powered greatness to your shop floor.
FAQs
1. What welding processes work with automation?
MIG, TIG, stick welding, and laser welding are the common welding processes that work with automation. Each process has specific strengths: MIG works well for high-speed production, whereas TIG delivers precise, high-quality welds. You'll need to match the process to your materials, thickness requirements, and quality standards.
2. How long does implementation take?
Implementation typically takes anywhere from a few weeks for simple automated systems to several months for complex robotic setups. Simple cobot installations with standard components typically complete in 4–6 weeks. However, custom integrations with vision systems and legacy equipment retrofitting require 8–12 weeks or longer. This includes design, fabrication, installation, testing, and operator training.
3. Can automated systems handle different materials?
Yes, automated systems can handle different materials, though you'll need to program specific parameters for each one. Modern systems can store multiple material profiles and switch between them automatically. This flexibility allows you to weld steel, aluminum, stainless steel, and other metals using the same equipment.
4. How do I train operators?
Most suppliers include basic operator training as part of the equipment purchase. This initial training covers system operation, basic troubleshooting, and safety protocols. For ongoing skill development, consider partnerships with technical colleges or enrolling operators in manufacturer certification programs.
